Network overview

Once your gateway service is up and users start connecting to the VPN, upload/download summary data is stored and can be displayed in "overview" tab of Defguard web application. See architecture overview for details of core-gateway interaction.

On the overview page, you'll see who is currently connected and how much data each connected user transferred. You'll also see overall network transfer charts.

Since version 1.4, Defguard dashboard allows administrators to see:

• Current amount of active users / network devices

• Active users / network devices during time period

• Network usage

• Gateway status

Dashboard

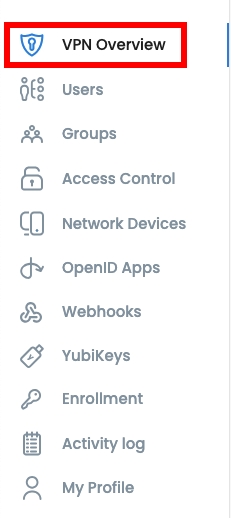

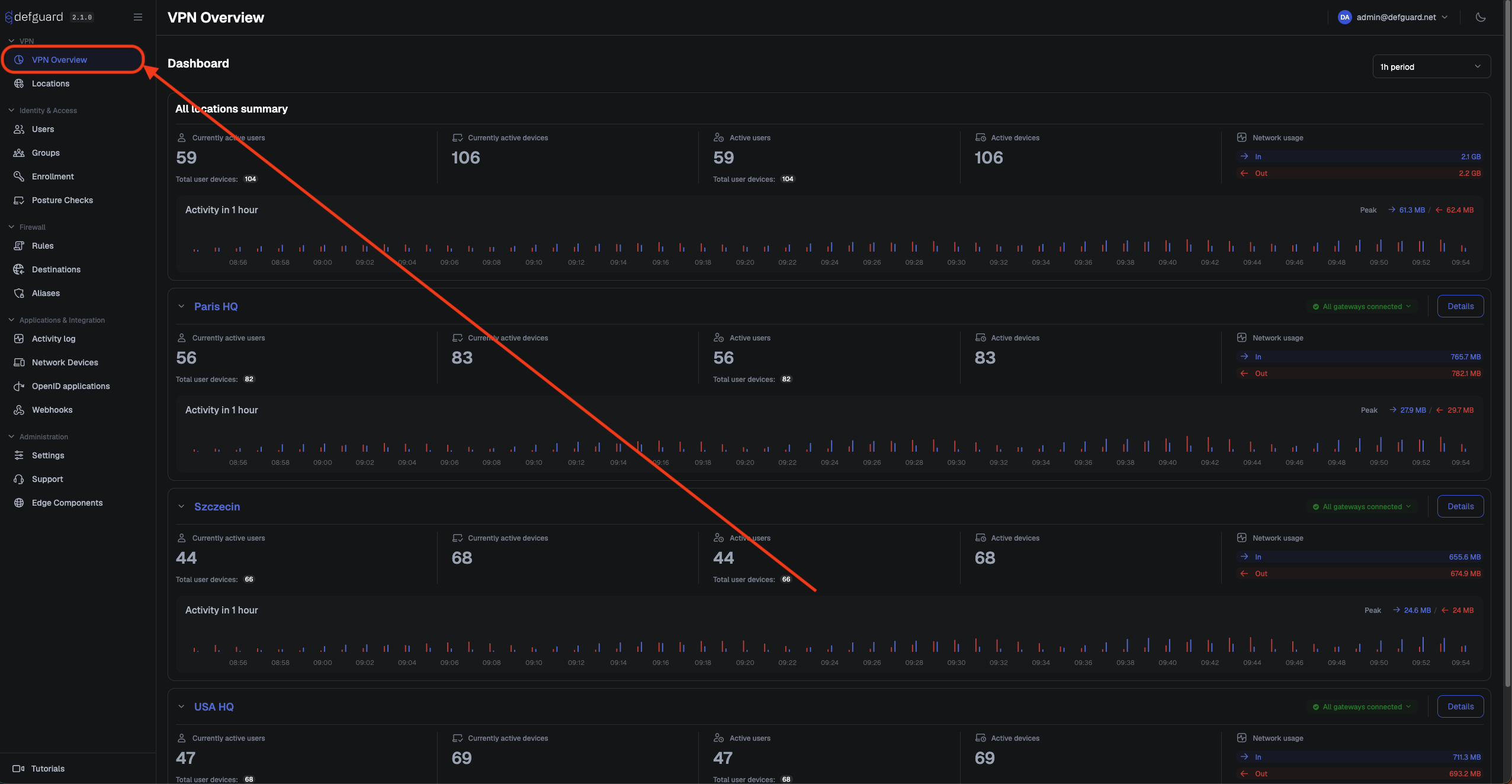

To access this dashboard, go to VPN Overview tab.

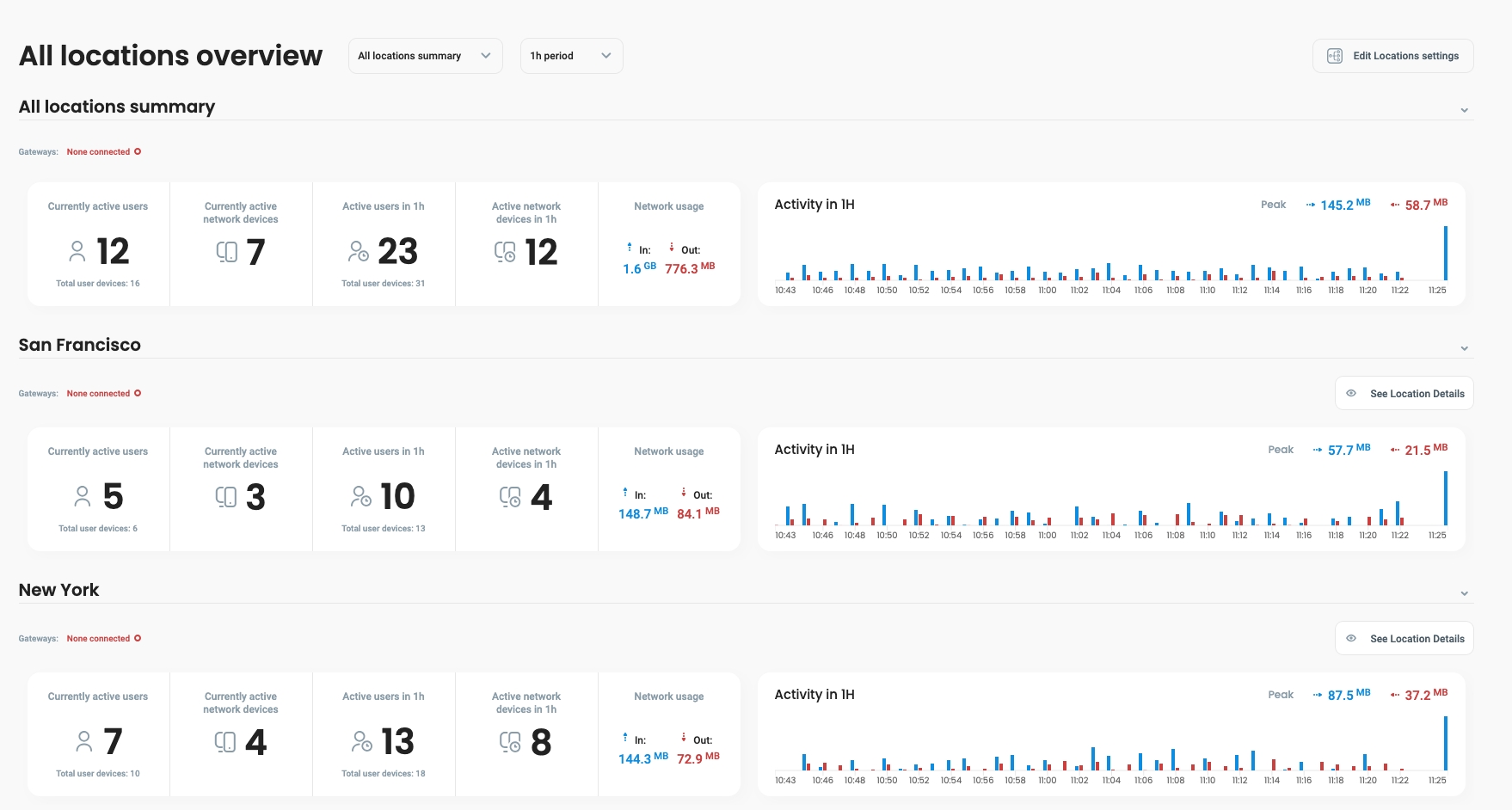

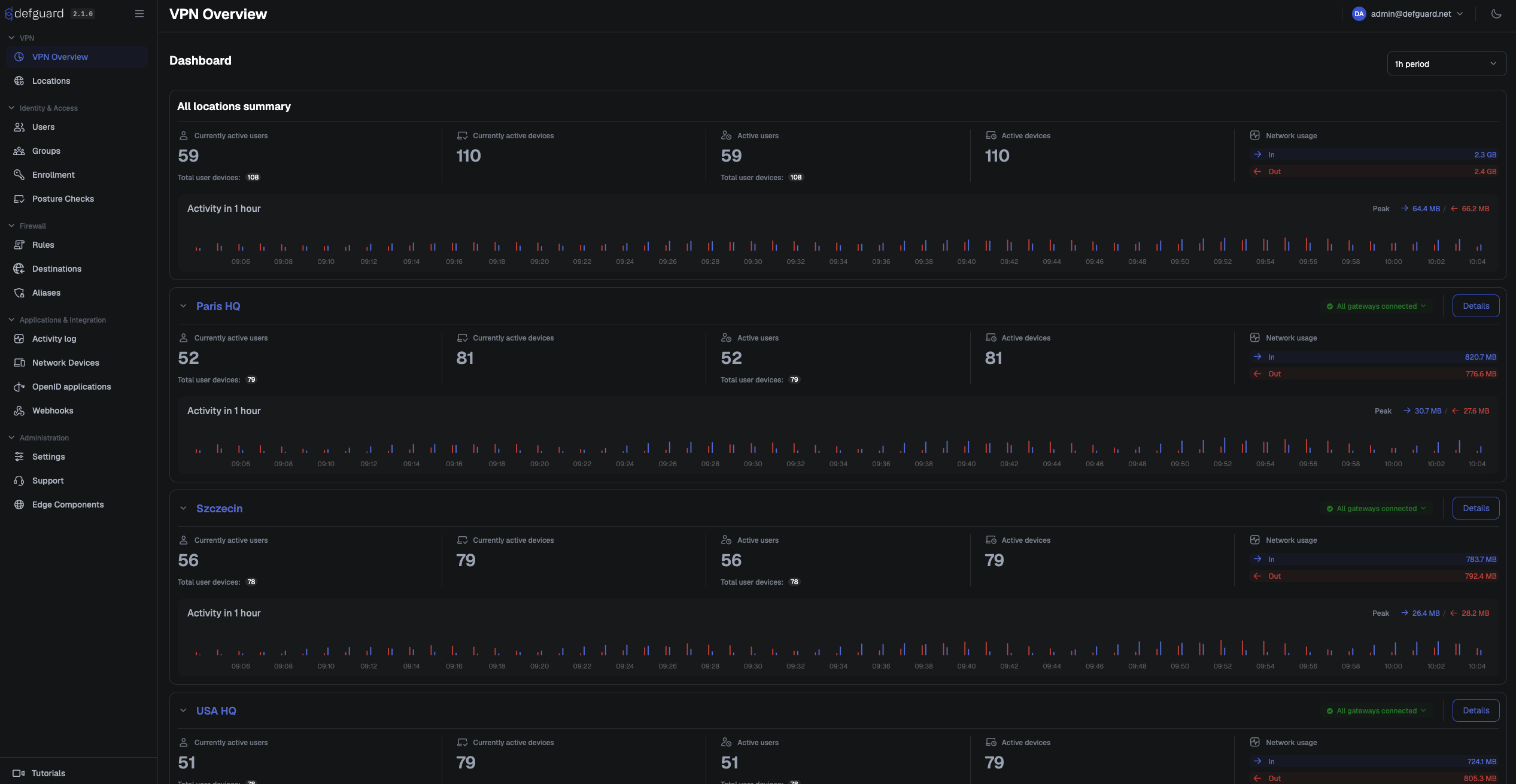

Dashboard looks like this, if you want to see more details about location, proceed to this section.

Detailed location overview

To access a dashboard with detailed information, you can:

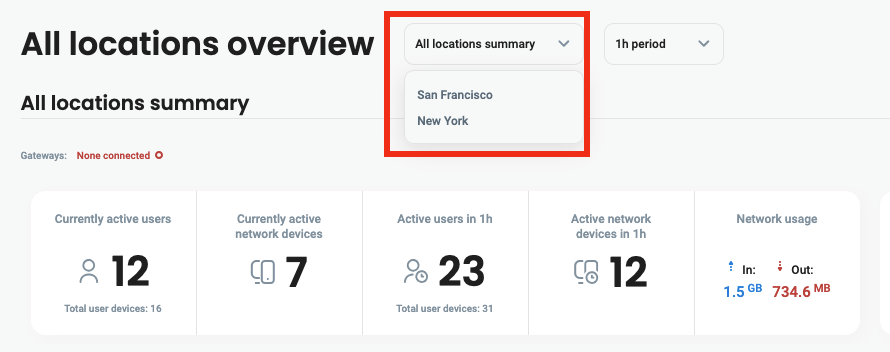

• Select location at the top of the page

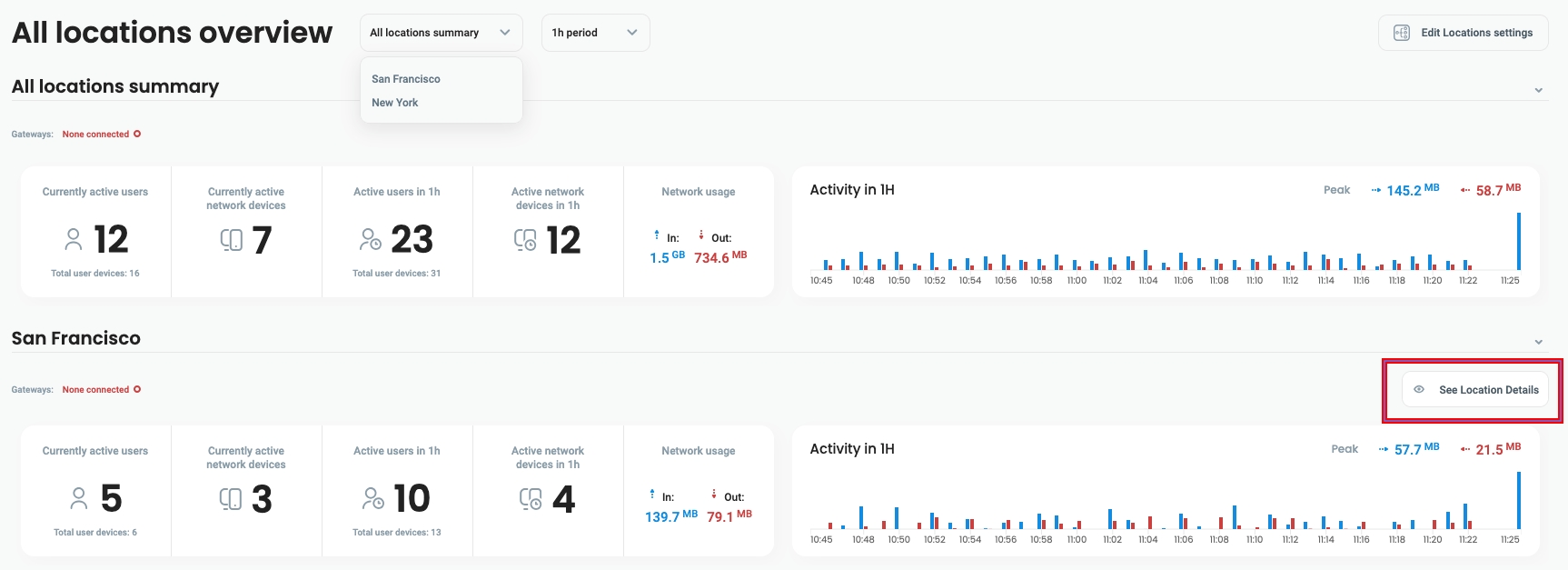

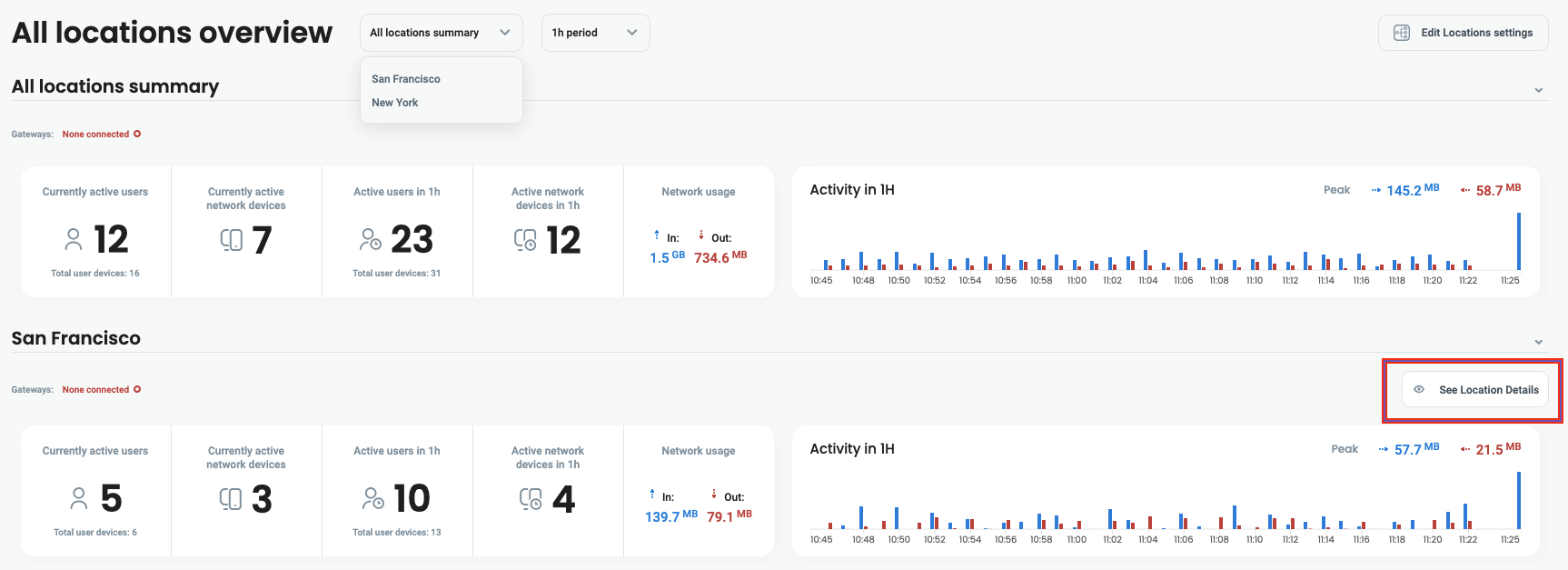

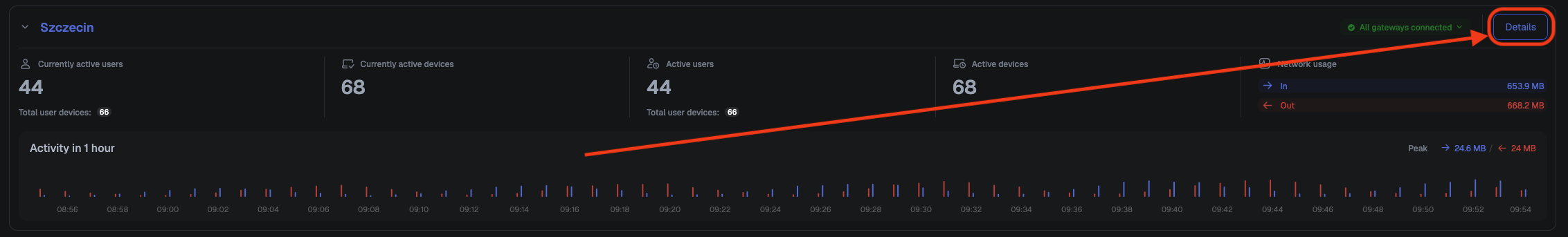

• Click See Location Details next to location

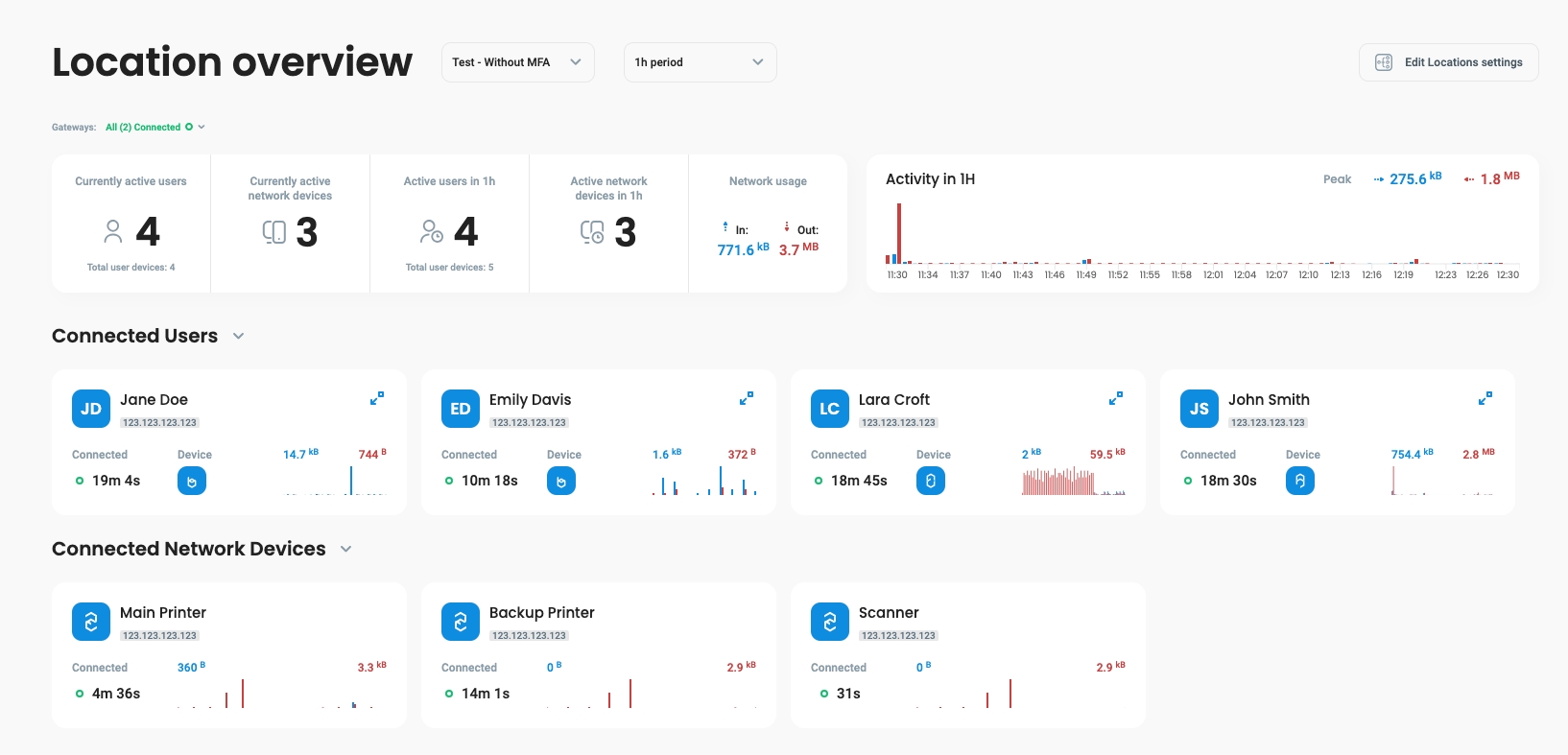

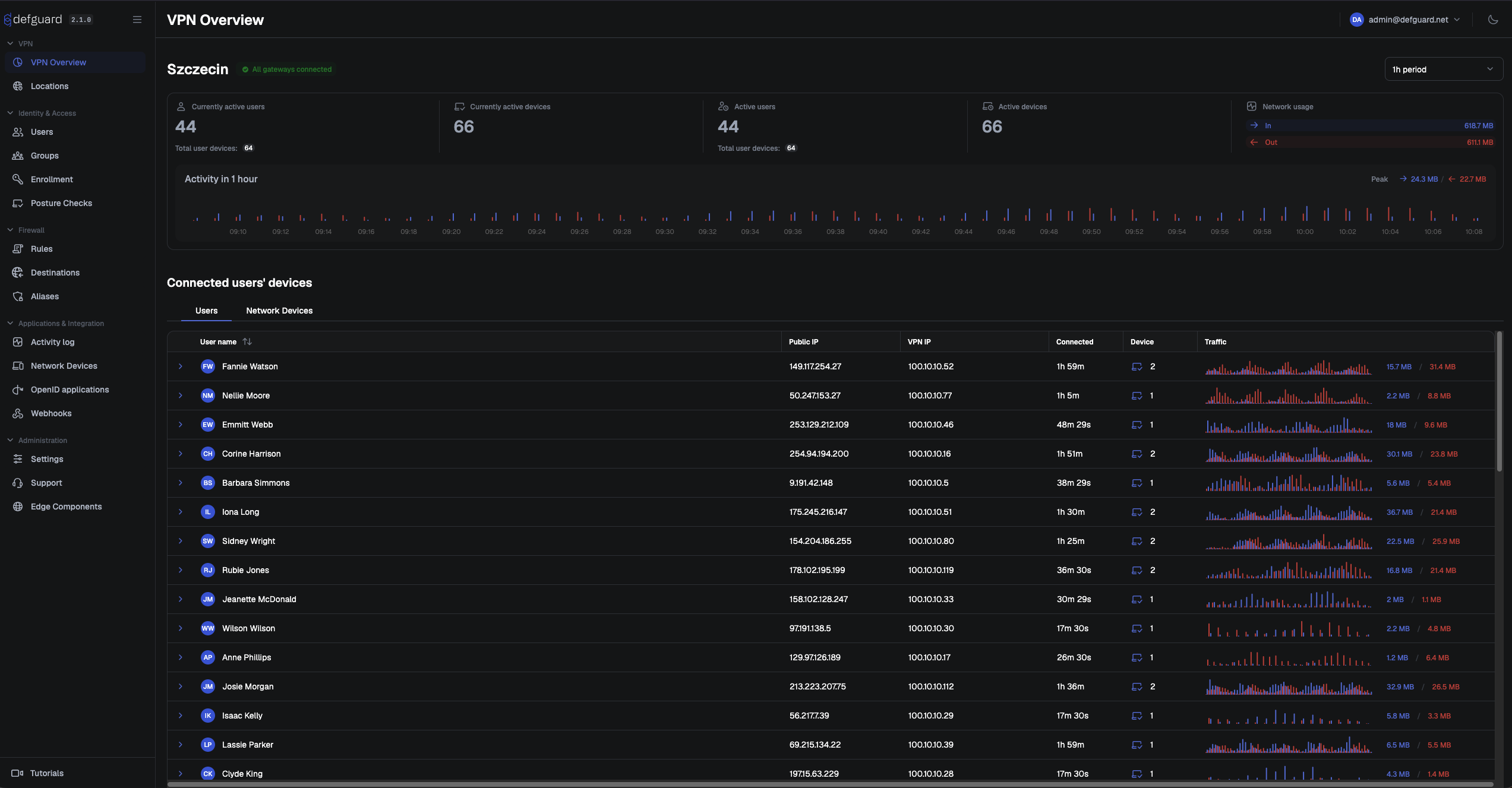

In this view, you can see individual users and network devices using this specific location.

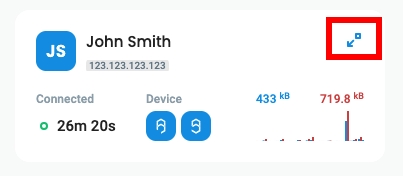

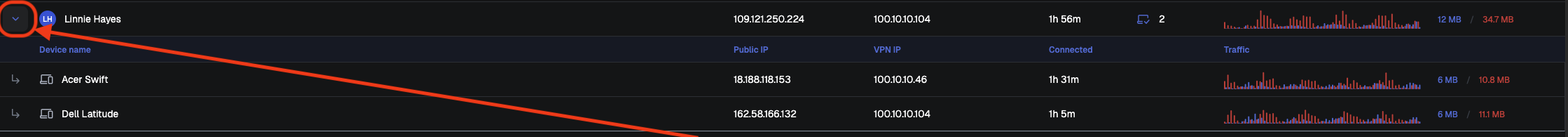

To access detailed information about a specific user, click the blue icon located next to the username.

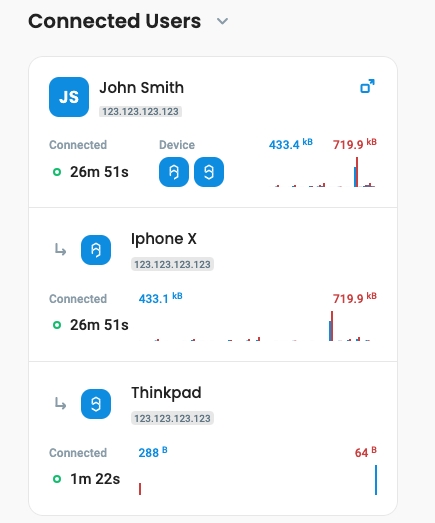

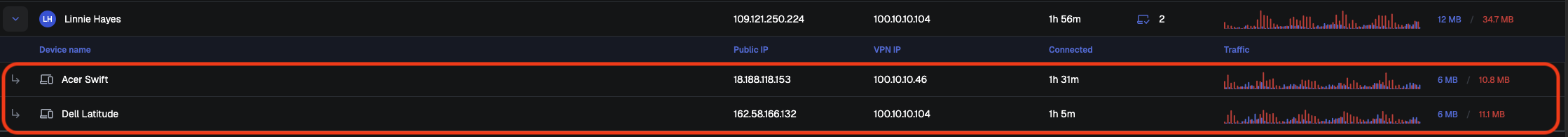

After expanding, you will see devices which are currently being used by the user.
