Firewall
Availability
This feature requires a Business or Enterprise plan. See the pricing page for details.
Access Control List feature is available starting with Defguard Core v1.3.0 and Defguard Gateway v1.3.0.
Defguard Gateway v1.3.0+ supports Linux machines with NFTables. Defguard Gateway v1.4.0+ supports FreeBSD, NetBSD, and macOS machines with Packet Filter (PF).
Defguard's Firewall module (also known as ACL - Access Control List) lets administrators control which users, groups, and devices can reach specific network resources over VPN. Rules are centrally managed in Core and pushed to gateways automatically.
What is the Firewall
Firewall rules define access to network resources for VPN-connected users and devices. Each rule answers a single question: who is allowed to access this destination?
Rules are enforced at the gateway level. When a user connects to a VPN location and sends traffic to a resource, the gateway checks whether their device IP is permitted by a rule for that destination. If no rule covers the destination, the location's default policy applies.
How rules work
Each firewall rule in Defguard is self-contained: it fully defines access for a single destination by generating two firewall rules on the gateway:
An ALLOW rule that permits traffic from the specified sources to the destination.
A DENY rule that blocks all remaining traffic to that destination.
This has three important consequences:
Order does not matter. Rules do not depend on each other or on the sequence in which they appear in the list.
The default policy does not affect rules. A rule produces the same result regardless of the location's default policy setting. See Enabling the Firewall.
Rules are portable. A rule assigned to multiple locations produces identical access behaviour on each.
When multiple rules cover overlapping destinations, their allowed sources combine. All ALLOW rules are evaluated before any DENY rule on the gateway, so traffic permitted by any matching rule for a destination will get through.
Permissions and Restrictions
The source side of a rule is divided into two parts:
Permissions define who is granted access. The sources listed here form the ALLOW firewall rule. You can permit specific users, groups, and network devices, or use the All X have access toggle to permit all entities of a given type at once.
Restrictions define exceptions removed from the permitted set. Restricted sources are subtracted from the permitted set before the ALLOW rule is generated. For each entity type you can restrict all entities or only specific ones.
The final ALLOW rule covers:
The DENY rule always blocks all remaining traffic to the destination - it is a blanket rule and does not reference specific sources.
If the subtraction produces an empty source list - for example, all permitted groups have also been restricted - no ALLOW rule is generated. The destination becomes completely blocked for everyone.
This is because creating an ALLOW rule without a specified source would allow all traffic.
Default Policy
The default policy controls how traffic is handled when it does not match any rule's destination. It is configured per location as part of the Firewall setting (see Enabling the Firewall):
Default Allow - users and devices can access all resources unless limited by a firewall rule.
Default Deny - all traffic not explicitly allowed by a firewall rule will be blocked.
The default policy has no effect on traffic that is covered by a rule. Rules always produce their own ALLOW and DENY pair regardless of this setting.
Rules and Locations
Each rule is assigned to one or more locations. A rule only applies to VPN traffic within its assigned locations. Alternatively, enabling the All locations toggle makes the rule apply everywhere - useful for organisation-wide access policies.
Firewall rules govern resource access within a VPN tunnel. They do not control access to the VPN location itself.
Location access - which users and groups can establish a connection to a given location - is managed separately through the location's Allowed Groups setting. A user must satisfy both conditions to reach a protected resource:
They must have VPN access to the location (Allowed Groups).
They must be permitted by a firewall rule for that destination.

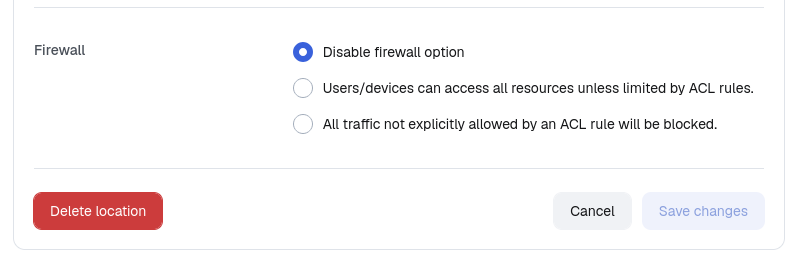

Enabling the Firewall
The Firewall is configured per location. To enable it, open the location's settings and set the Firewall option to one of:
Disable firewall - the Firewall is off for this location. No rules are enforced and all traffic is permitted.
Default Allow - the Firewall is active. Traffic to destinations not covered by any rule is permitted.
Default Deny - the Firewall is active. Traffic to destinations not covered by any rule is blocked.
Default Deny is the recommended setting for production environments. It ensures that only explicitly permitted traffic can reach resources, regardless of whether a rule has been defined for every destination yet.

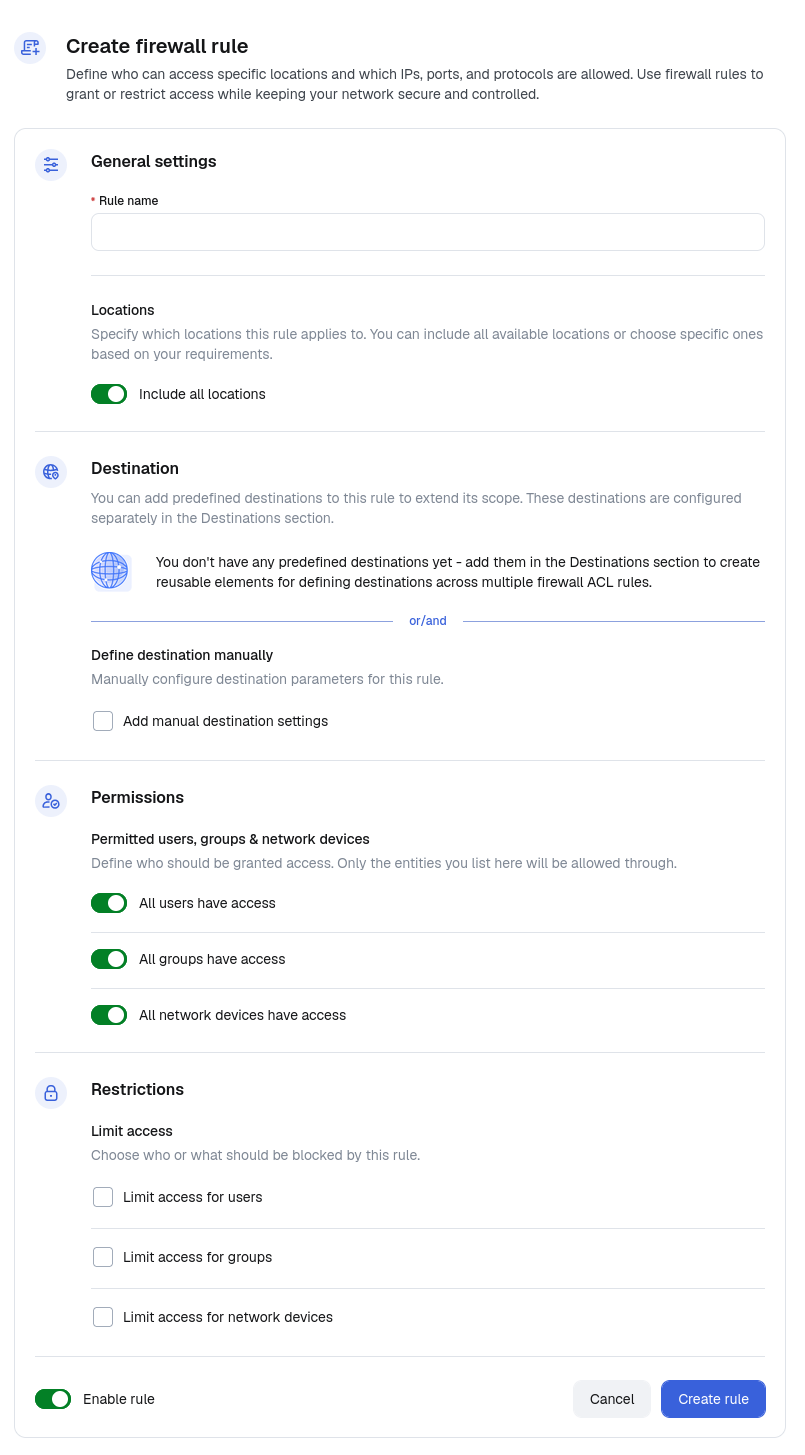

Anatomy of a rule
Basic configuration
Rule name - a descriptive label used to identify the rule in the list and in gateway firewall comments.
Locations - one or more locations the rule applies to. Enable All locations to apply the rule across every location.
Enabled - when disabled, the rule is not included in the firewall configuration pushed to gateways.
Disabling a deployed rule creates a pending change. The rule remains enforced on gateways until the pending change is deployed. See Managing rules.

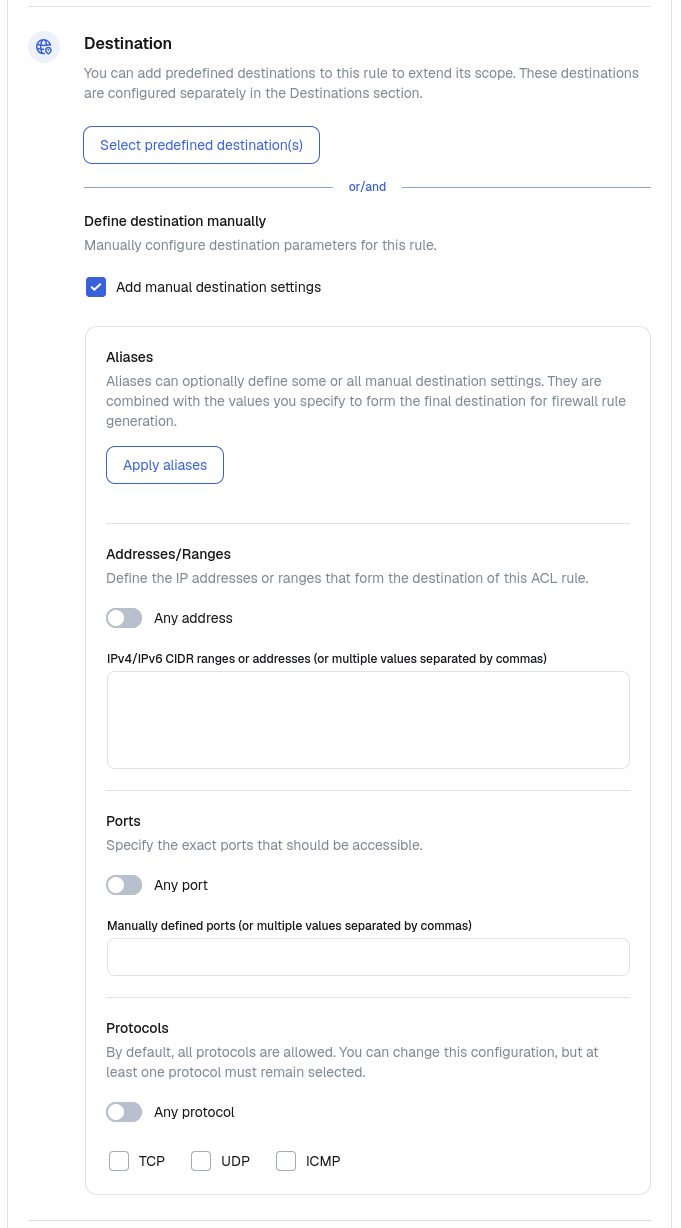

Destination
The destination section defines the network resource the rule applies to.
Add manual destination settings - when checked, you define destination parameters directly in the form. When unchecked, only Destinations attached to this rule define the target.
When manual settings are enabled, all three destination fields - address, port, and protocol - are required. Each must be provided via explicit input, its Any toggle, or an Alias attached to the rule that covers that dimension.
Addresses/Ranges - one or more IPv4/IPv6 addresses, CIDR ranges, or IP ranges, comma-separated. Examples:
10.1.1.0/24,10.2.1.10-10.2.2.100,fd00:1000::/64. Enable Any address to match all destinations - useful when the rule should restrict protocols or ports regardless of destination IP.Ports - TCP/UDP ports or port ranges, comma-separated. Examples:
22,8000-9000,80, 443. Enable Any port to match all ports.Protocols - TCP, UDP, or ICMP. Enable Any protocol to match all protocols.
Aliases and Destinations - reusable destination definitions that can be shared across multiple rules. An Alias contributes additional address, port, and protocol parameters to this rule's manual destination. A Destination acts as a fully independent target and generates its own ALLOW and DENY firewall rules. See Aliases and Destinations for full details.

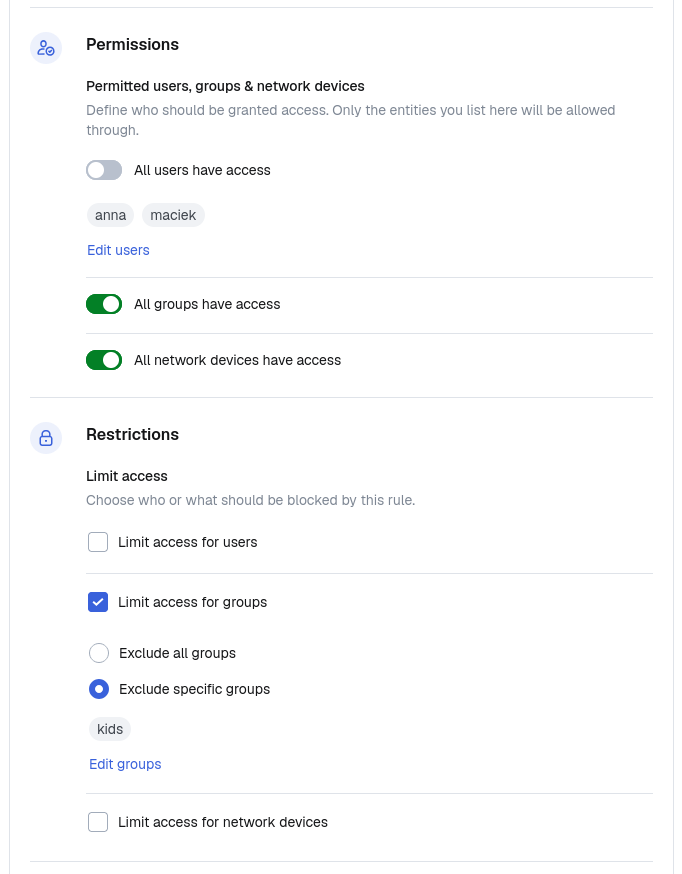

Permissions and Restrictions
Permissions - define who is granted access to the destination.
For each entity type (users, groups, network devices), either enable the All X have access toggle to permit every entity of that type, or select specific entities. At least one permitted source must be specified.
Restrictions - define exceptions from the permitted set.
For each entity type, check Limit access for X to enable restrictions, then choose:
Exclude all - remove all entities of that type from the permitted set.
Exclude specific - remove selected entities from the permitted set.
Managing rules
All changes to rules - creating, editing, disabling, and deleting - are staged as Pending Changes and do not take effect on gateways until explicitly deployed.
The rule list is split into two sections:

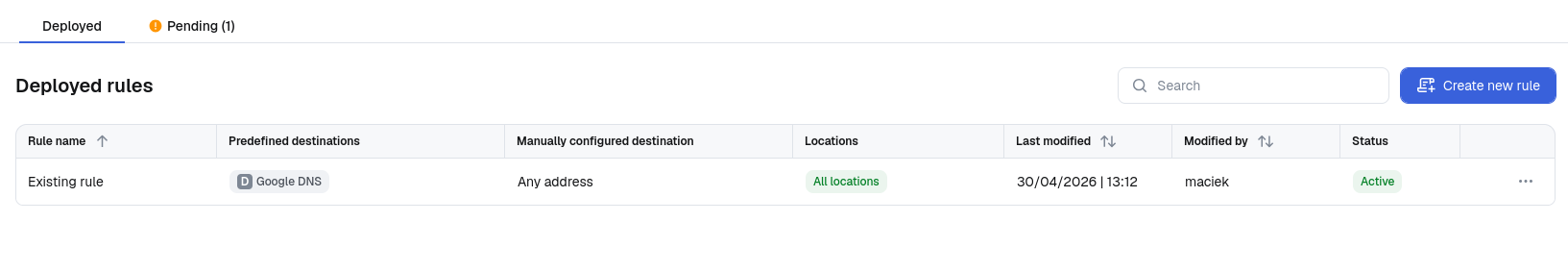

Deployed Rules - rules currently active on their assigned locations.

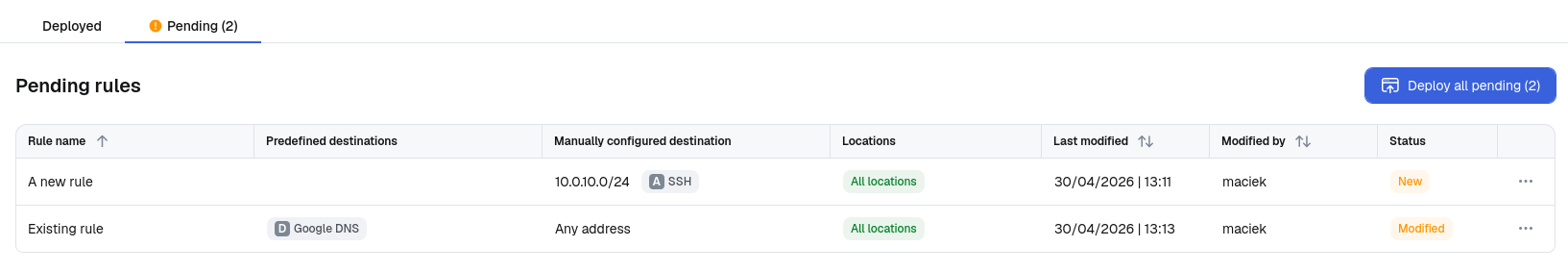

Pending Changes - staged changes awaiting deployment, including new rules, edits to existing rules, rules being disabled, and deletions.
Use the Deploy pending changes button to push all staged changes to affected gateways at once. Deploying in batches reduces the risk of transient firewall disruptions compared to applying changes one at a time.
Eventual consistency - Defguard does not track rule application status per individual gateway. If a gateway loses connectivity to Core at the time of deployment, the updated configuration will not be propagated immediately. Rules will be applied once the connection is restored.
Examples
Granting access to specific users
Goal: Allow two specific users to reach an internal server at 10.1.1.50 through the Office-Berlin location.
Create a rule assigned to Office-Berlin, with destination 10.1.1.50 and the two users selected in Permissions. Once deployed, those users' device IPs are permitted to reach 10.1.1.50. All other traffic to that address is blocked by the DENY rule.
Using groups with exceptions
Goal: Allow all members of the Staff-Berlin group to access 10.1.1.0/24, except members of the Contractors group.
Create a rule with destination 10.1.1.0/24, the Staff-Berlin group permitted, and a restriction excluding the Contractors group. Members of Contractors who are also in Staff-Berlin are subtracted from the permitted set and will not appear in the ALLOW rule.
This approach scales well: adding a new employee to Staff-Berlin grants them access automatically, and any contractor added to Contractors is excluded without modifying the rule.
Using a Destination for a named service
Goal: Grant access to a PostgreSQL server at 10.2.0.38:5432 from multiple rules without repeating the address and port configuration in each.
First, create a Destination called PostgreSQL - Analytics DB with address 10.2.0.38, port 5432, and protocol TCP. See Aliases and Destinations.
Then add PostgreSQL - Analytics DB in the Destinations field of any rule that should grant access to that server. Each rule that includes it gets its own independent ALLOW and DENY pair for 10.2.0.38:5432, with sources taken from that rule's Permissions. Updating the Destination's address or port in one place updates it for every rule that uses it.
Restricting access by port and protocol
Goal: Allow all users to reach a web server at 10.3.0.10, but only on port 443 over TCP - blocking all other ports and protocols on that address.
Create a rule with destination 10.3.0.10, port 443, protocol TCP, and All users have access enabled in Permissions. Because port and protocol are explicitly set, the ALLOW rule only permits TCP/443 traffic. The DENY rule blocks all other traffic to 10.3.0.10, including other ports and protocols.
Using an Alias
Goal: Reuse a standard HTTPS port-and-protocol restriction across multiple rules without repeating the configuration.
Create an Alias called HTTPS with port 443 and protocol TCP. See Aliases and Destinations.
In a rule targeting 10.3.0.10, add the HTTPS alias with no ports or protocols set in the manual destination (the Any address/Any port toggles should be disabled to not override the alias). The alias contributes port 443 and protocol TCP to the rule's destination settings, making the effective destination 10.3.0.10:443/TCP. The same HTTPS alias can be added to any other rule to apply the same restriction there too.
