# Connecting to Instance

In this guide, you will learn how to connect to location. If you haven't added an instance yet, follow [this guide](/2.2/using-defguard-for-end-users/mobile-client/instance-adding.md).

## Connecting to location without MFA

1. Open Defguard

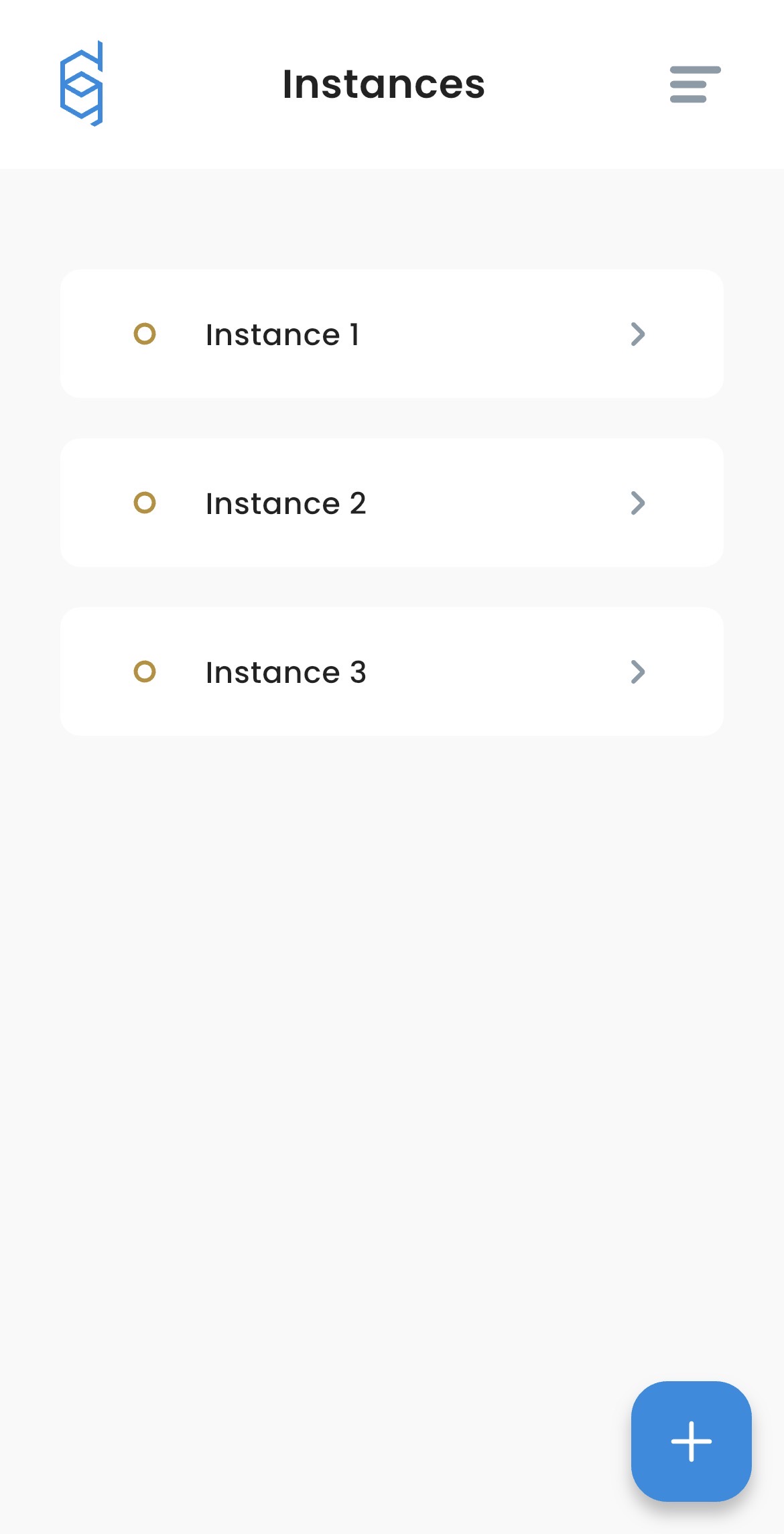

2. Click on Instance you want to connect to.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/XJVtxIcDRRSVitIoESlP/defguard-instance-list.jpg" alt="" width="375"><figcaption></figcaption></figure>

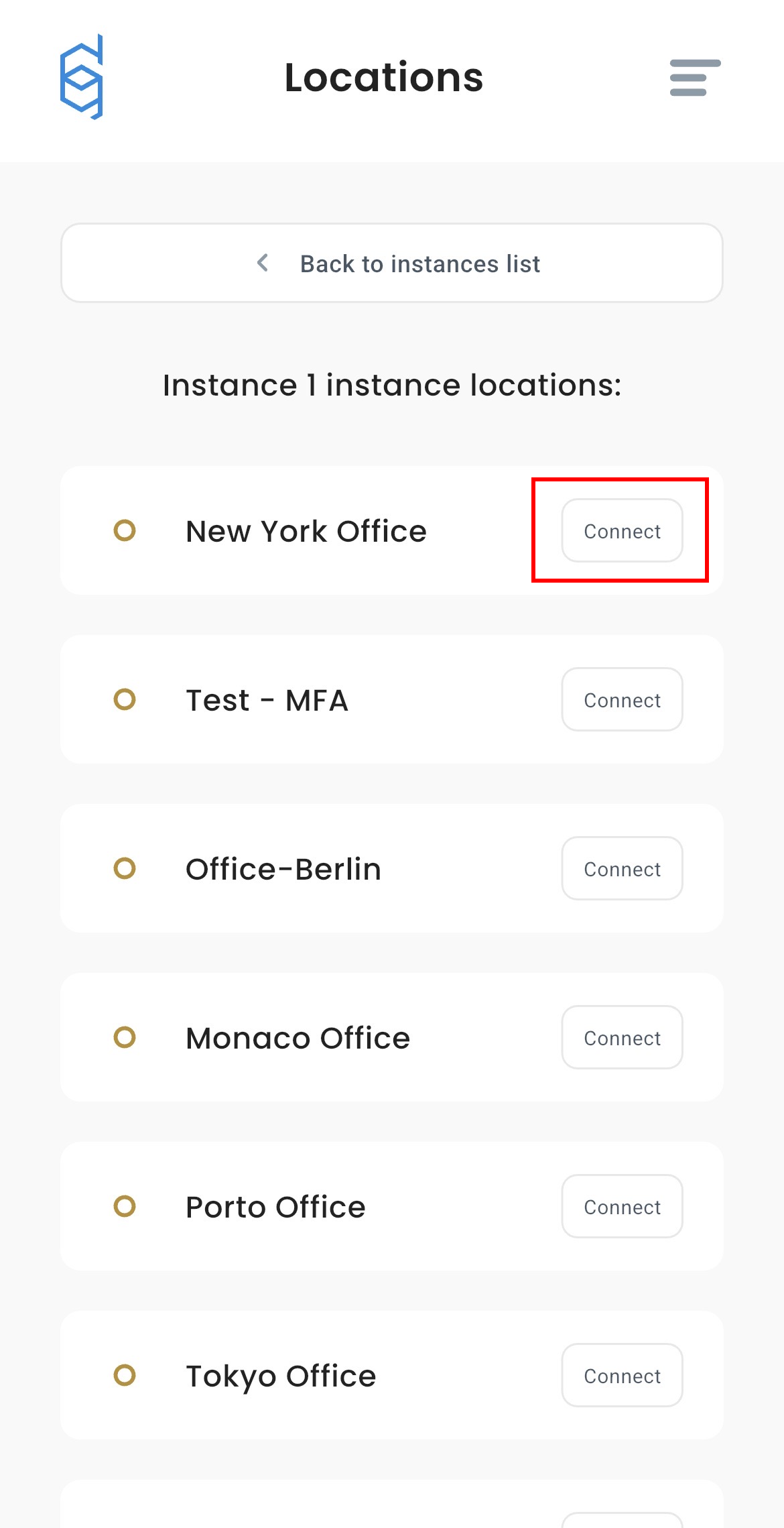

3. Click **"Connect"** next to location you want to use.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/A9I8BJUdwn4c6l8fqWwu/defguard-mobile-connect-location-list.png" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}

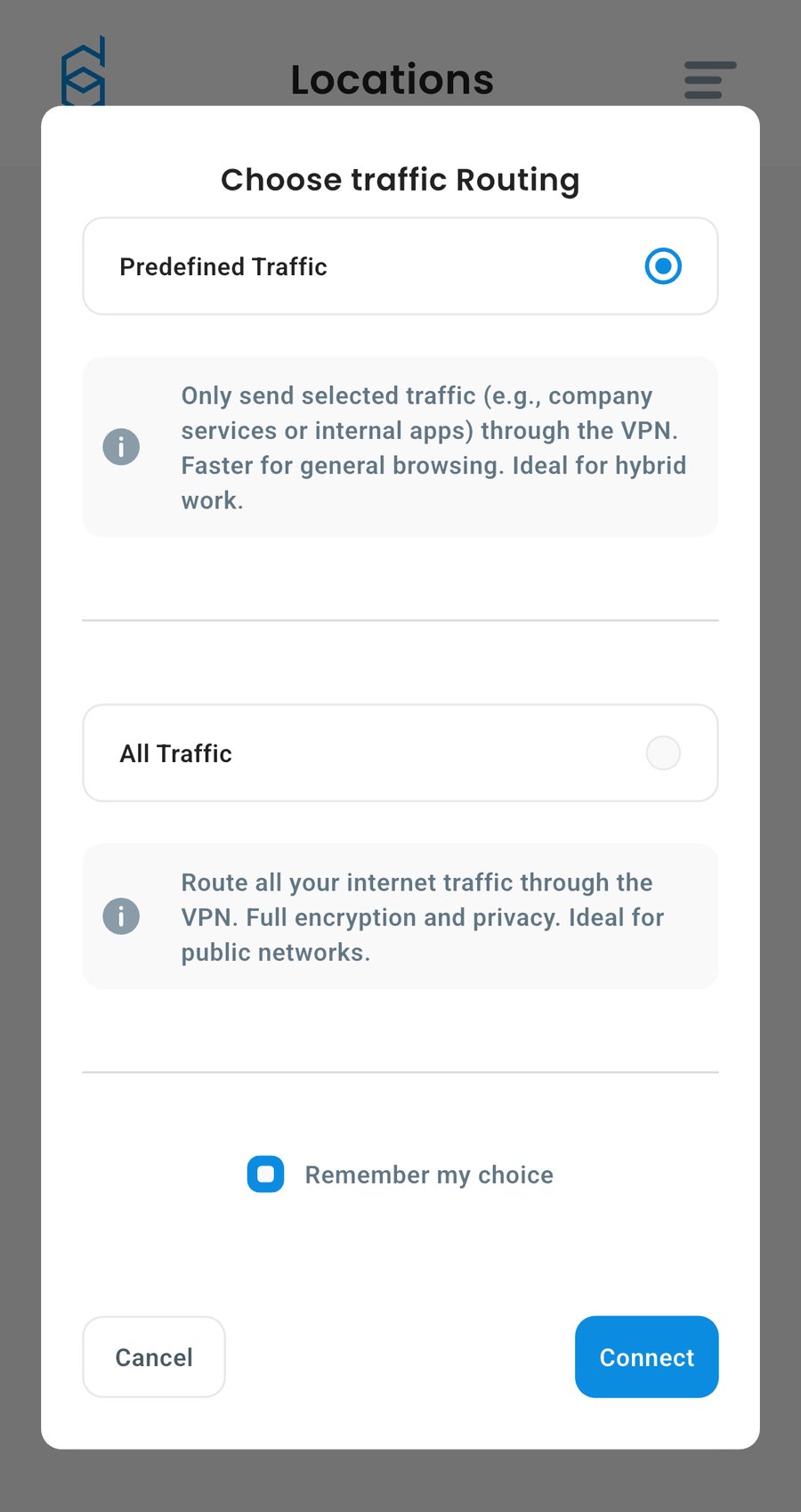

The first time you connect, app will ask whether you want to route **predefined traffic** or **all traffic**. You will see screen like this:

<img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/EZr0RL7nHvYg3jSLSXlo/defguard-mobile-traffic-panel.png" alt="" data-size="original">

* **Predefined traffic** will only route traffic specified by your administrator.
* **All traffic** will route everything through VPN tunnel.

You can select **Remember my choice** if you don't want to be asked again.

If you want to change your traffic routing method after your first connection go to [this article](/2.2/using-defguard-for-end-users/mobile-client/instance-manage.md#changing-traffic-routing-method-after-first-connection)
{% endhint %}

4. Choose your routing method
5. Confirm

{% hint style="warning" %}

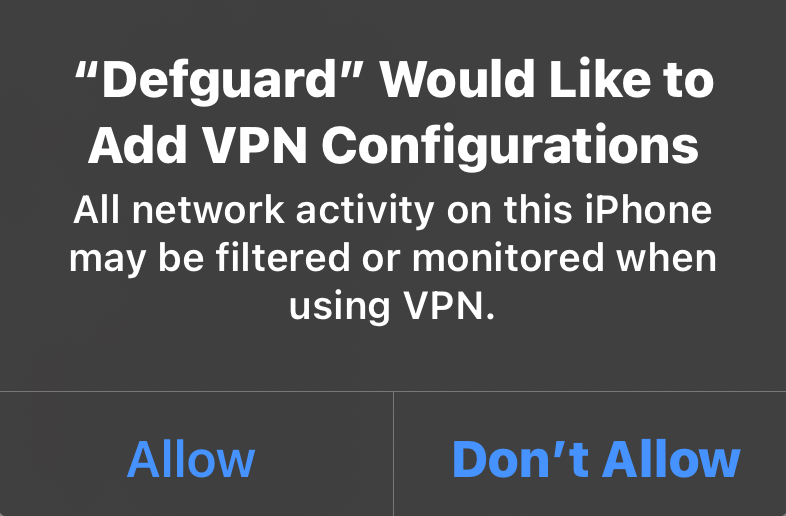

Your phone will need to add new VPN configuration, you will see popup like this:

<img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/XTkBZRbX9YxBUyEH0AuE/defguard-mobile-new-vpn-configuration-ios.png" alt="" data-size="original">

Please click **Allow**, without this permission, Defguard cannot establish VPN connection.
{% endhint %}

{% hint style="info" %}
If your location does not use MFA, your VPN connection should be established immediately after confirming your routing method.
{% endhint %}

{% hint style="info" %}
Some VPN locations require extra security when connecting. This is called MFA (Multi-Factor Authentication). There are two types:

* Internal MFA: You confirm your identity directly in the app, for example by entering a code from your Authenticator App or email.
* External MFA: You are redirected to a secure login page (like Google or Microsoft) outside the app to confirm your identity.
  {% endhint %}

{% hint style="warning" %}
If your location is using MFA please go to [section 3.2 "Connecting to location with MFA](#connecting-to-location-with-mfa)
{% endhint %}

## Connecting to location with MFA

1. Open Defguard

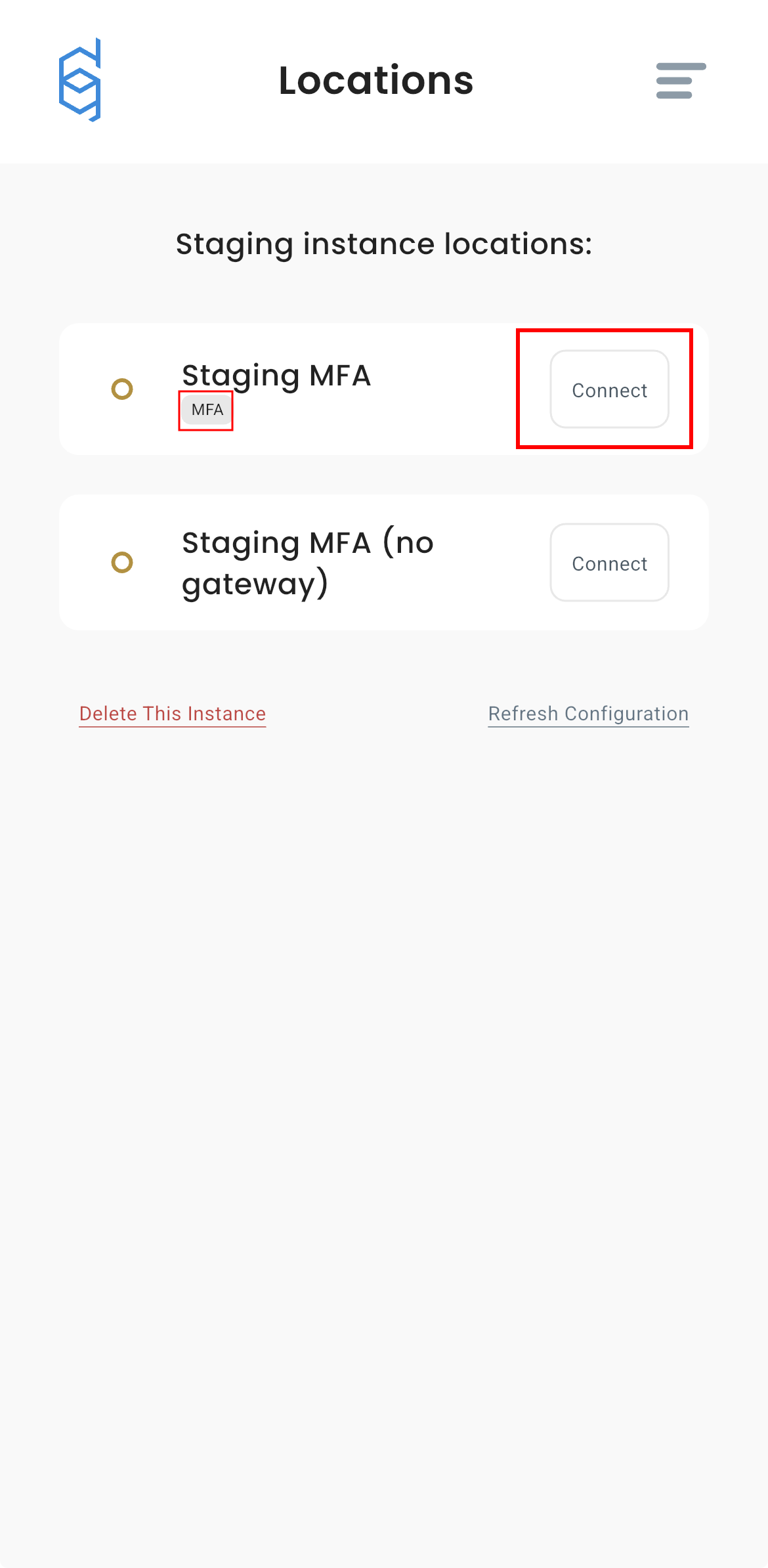

2. Go to **Instances** and click **Connect** next to location you want to use.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/CgbrVaK6aoJ1Q6ISusSb/defguard-mobile-connecting-to-mfa-location.png" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}
The first time you connect, app will ask whether you want to route **predefined traffic** or **all traffic**. You will see screen like this:

<img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/EZr0RL7nHvYg3jSLSXlo/defguard-mobile-traffic-panel.png" alt="" data-size="original">

* **Predefined traffic** will only route traffic specified by your administrator.
* **All traffic** will route everything through VPN tunnel.

You can select **Remember my choice** if you don't want to be asked again.

If you want to change your traffic routing method after your first connection go to [this article](/2.2/using-defguard-for-end-users/mobile-client/instance-manage.md#changing-traffic-routing-method-after-first-connection)
{% endhint %}

3. Choose your routing method, and confirm.

Depending on your location settings you will need to authenticate with [external](#external-mfa) or [internal](#internal-mfa) MFA.

### External MFA

If the VPN location requires OpenID for authentication (external MFA) you will see screen like this:

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/qrkGAIQgiIJB3TxI9CGN/defguard-mobile-openid-banner.png" alt="" width="375"><figcaption></figcaption></figure>

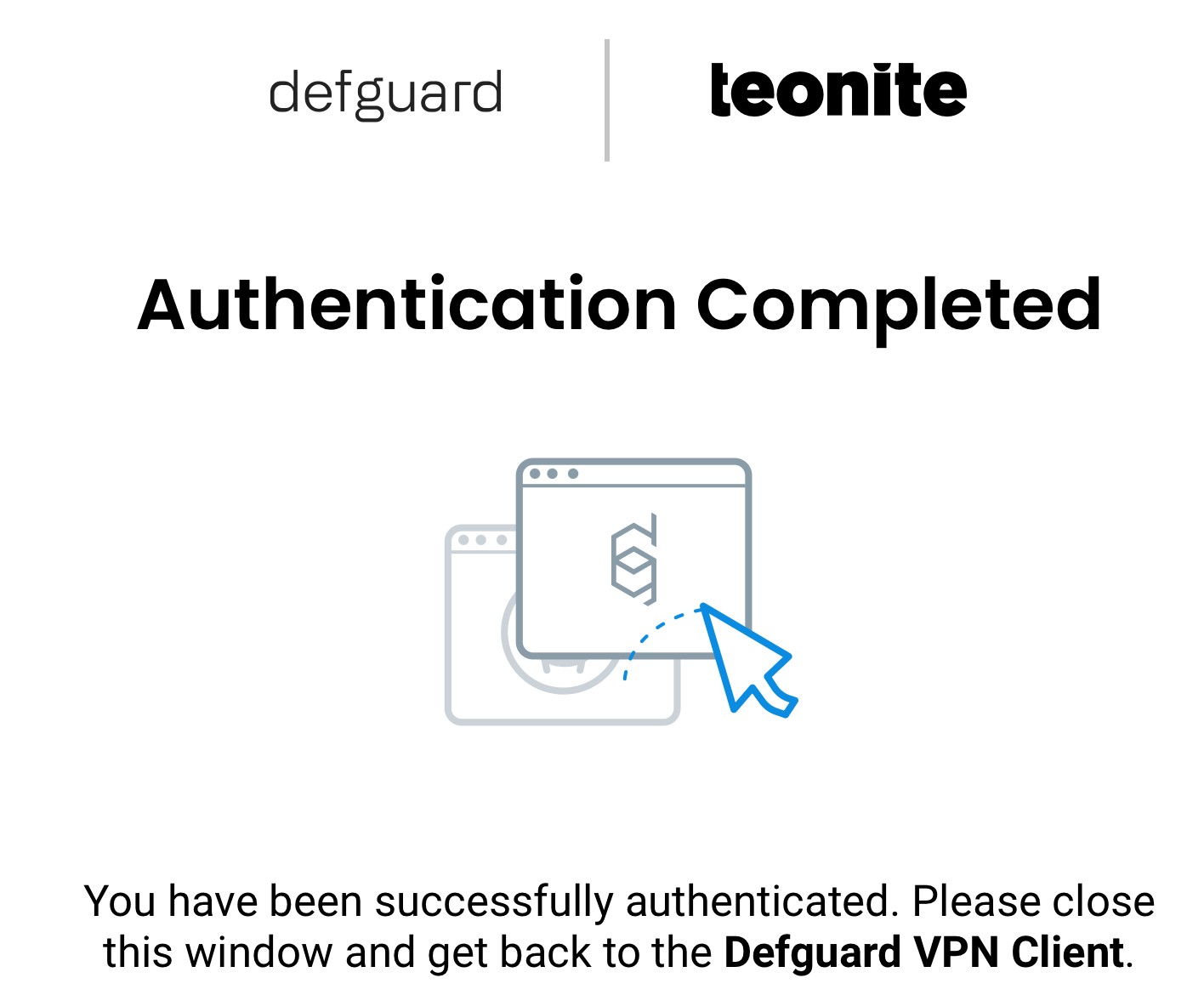

Click **Authenticate with OpenID** and you will be redirected to a secure login page (for example Google/Microsoft). Follow the instructions on the screen to log in. After successful authentication please return to Defguard. In the app you will see screen like this:

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/vvMYMzEKaAxdJCTIXUXr/defguard-mobile-openid-success.png" alt="" width="375"><figcaption></figcaption></figure>

After successful authentication, return to Defguard Mobile, your connection will be established automatically.

### Internal MFA

{% hint style="warning" %}
When connecting with MFA for the first time, you will have the option to select **Remember my choice**. Select this option if you want to always use this method for this location.
{% endhint %}

1. If you are connecting for first time, or if you have not clicked **Remember my choice** during previous connection, you will need to choose your MFA method.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/jqPZm8ZnaLRp5YekM0PI/defguard-mobile-mfa-panel.png" alt="" width="375"><figcaption></figcaption></figure>

2. Choose method configured for your account, and click **Connect**.
   * If you're using "Email" method, please enter code sent to your email.
   * If you're using "Authenticator App", please enter code generated within your authenticator app.

{% hint style="info" %}
If you don't know how to setup or use your **Authenticator App** please check [this article](/2.2/using-defguard-for-end-users/setting-up-2fa-mfa.md#setting-up-2famfa) for detailed information.
{% endhint %}

3. After this step, your connection will be established immediately.

## Disconnecting from VPN

To disconnect from a VPN location in Defguard:

1. Open Defguard.
2. Go to the active instance

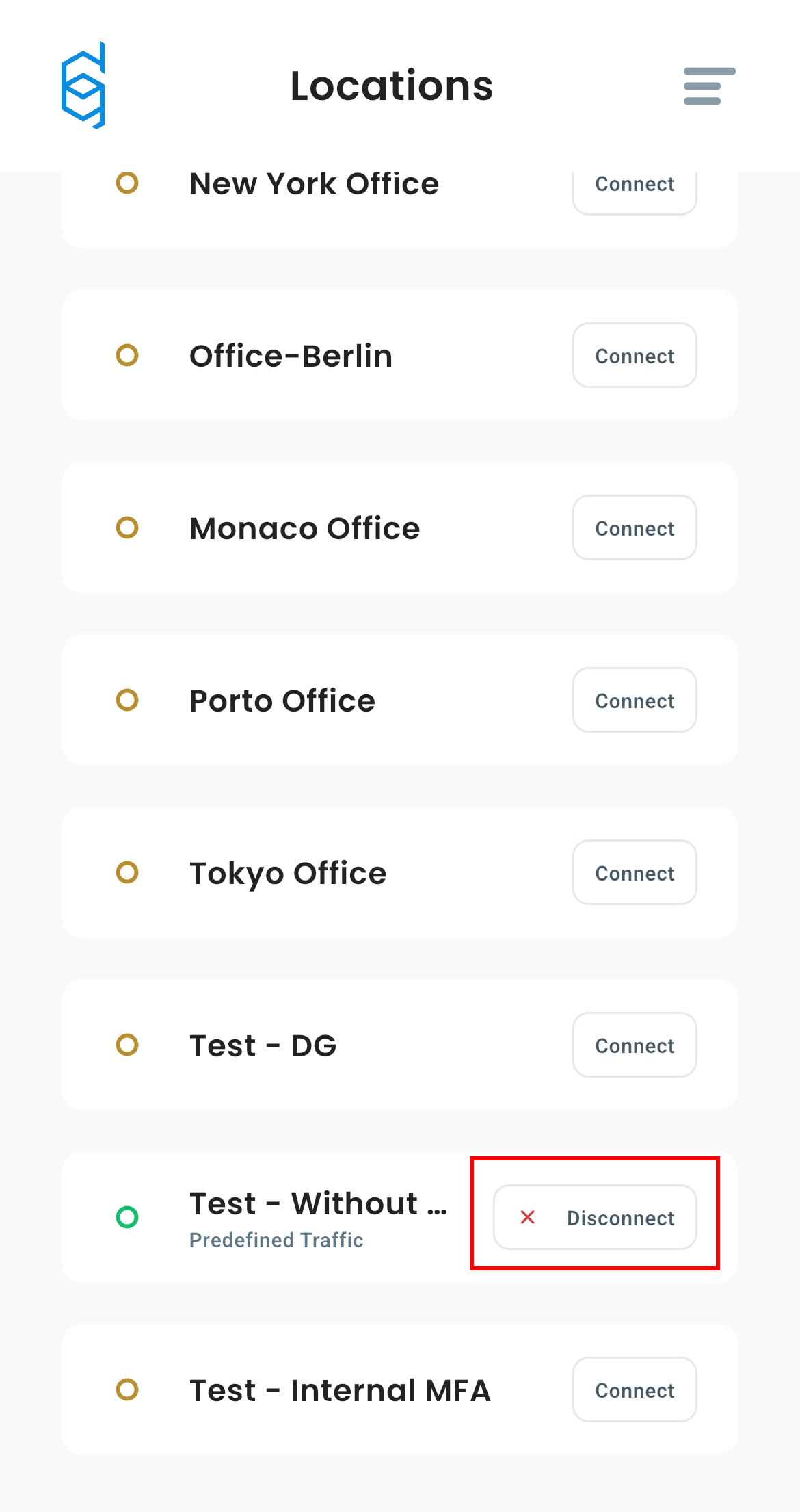

3. Click **Disconnect** button next to the location you are currently connected to.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/yZJJrqD91EXJStMVE2s2/defguard-mobile-disconnect-button.png" alt="" width="375"><figcaption></figcaption></figure>

{% hint style="info" %}
After disconnecting, your device will stop sending traffic through the VPN and return to your regular internet connection.
{% endhint %}
