# Adding Edge component

### Navigate to Edge Components

1. Log in to the Defguard web UI as an administrator.

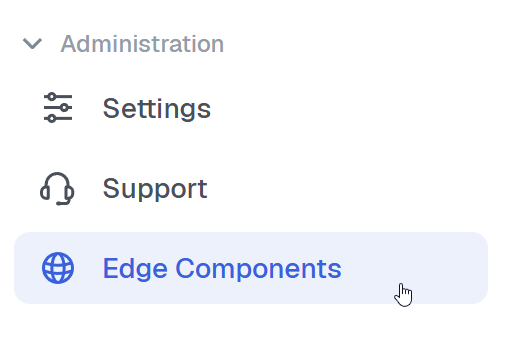

2. In the left sidebar, click **Edge Components**.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/2O3rCmjGF1UyZFux8QVK/image.png" alt=""><figcaption></figcaption></figure>

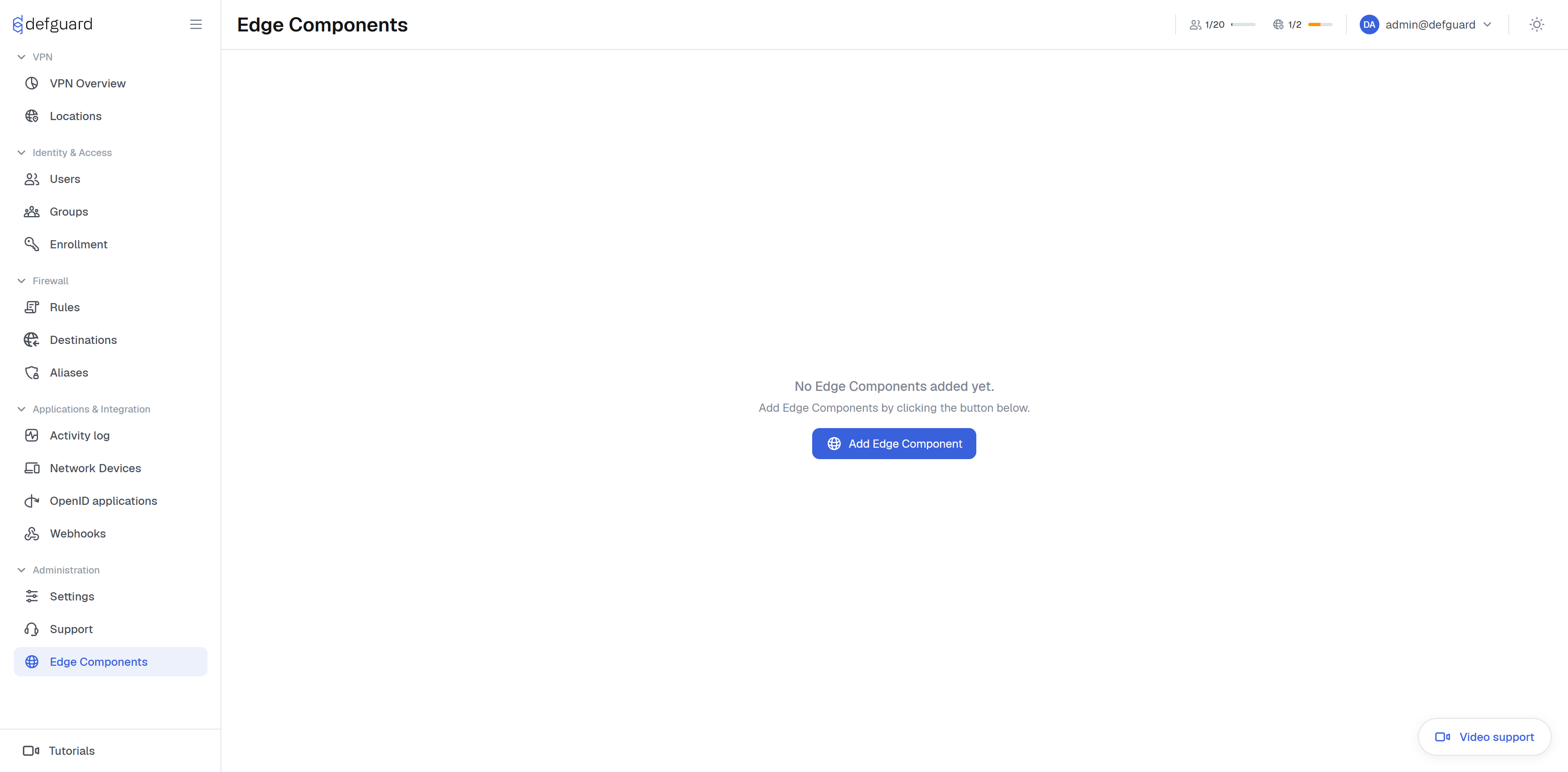

3. Click "Add Edge Component"

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/Cedc6n9JJdFAUMFdx3KS/image.png" alt=""><figcaption></figcaption></figure>

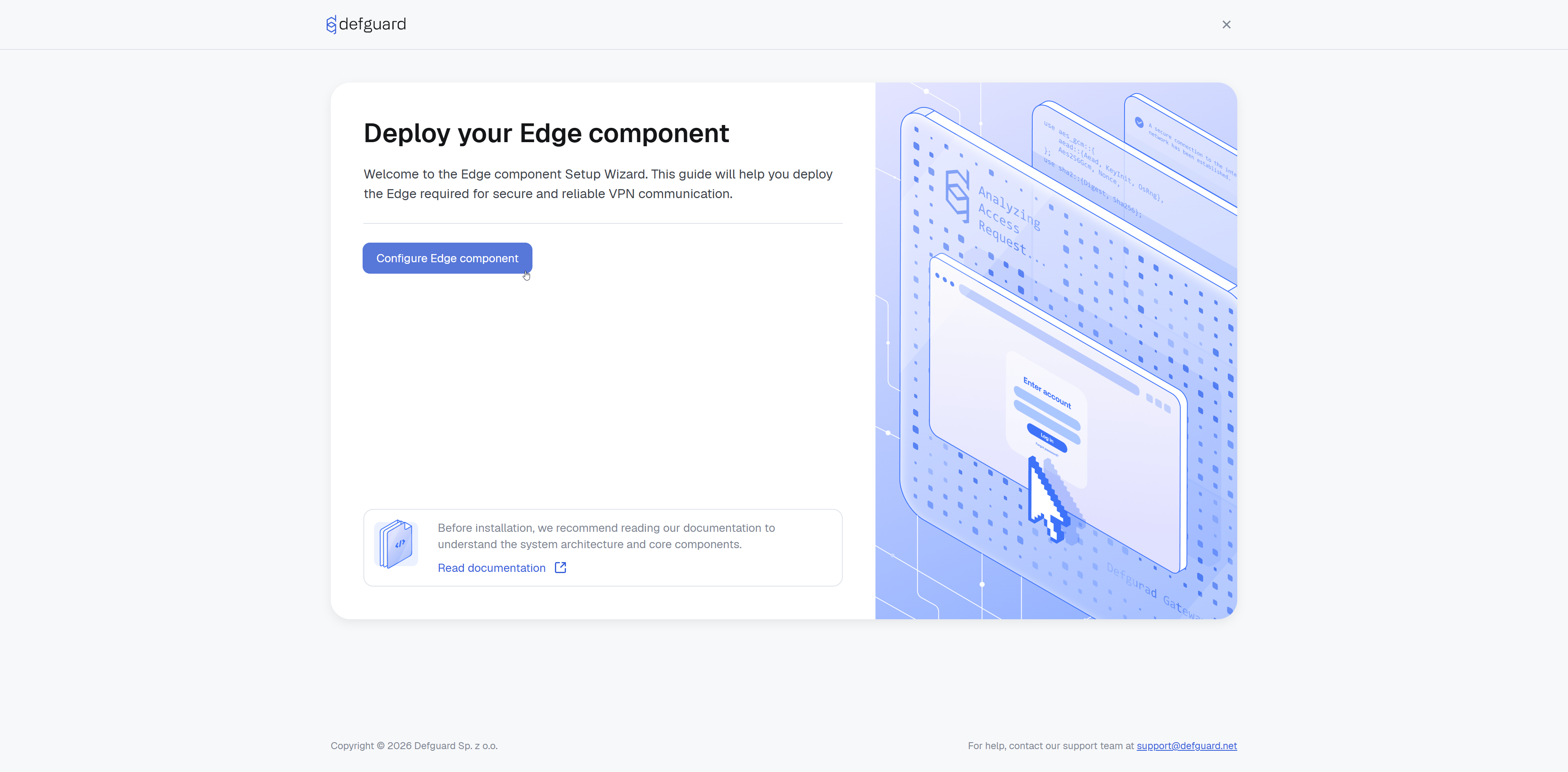

### Welcome screen

Click **Configure Edge component**.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/ZHk2yflOEDDsnnTpgoY1/image.png" alt=""><figcaption></figcaption></figure>

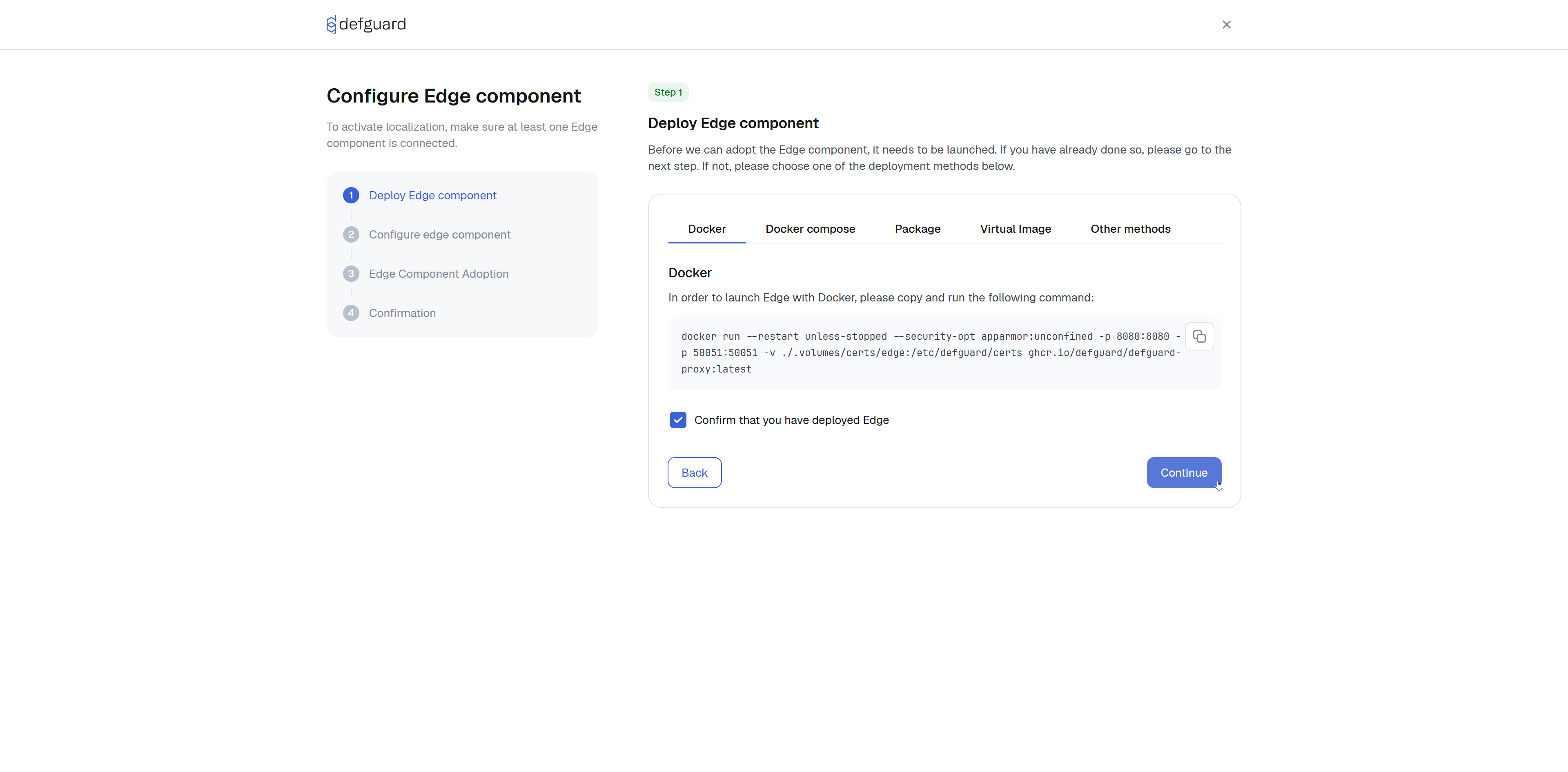

### Deploy Edge component

This step provides ready-to-use deployment commands for every supported method. Choose the tab that matches your environment and continue when your Edge component is up and running ready to be adapted.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/mogM0HvyOEeD0V3e8a7x/image.png" alt=""><figcaption></figcaption></figure>

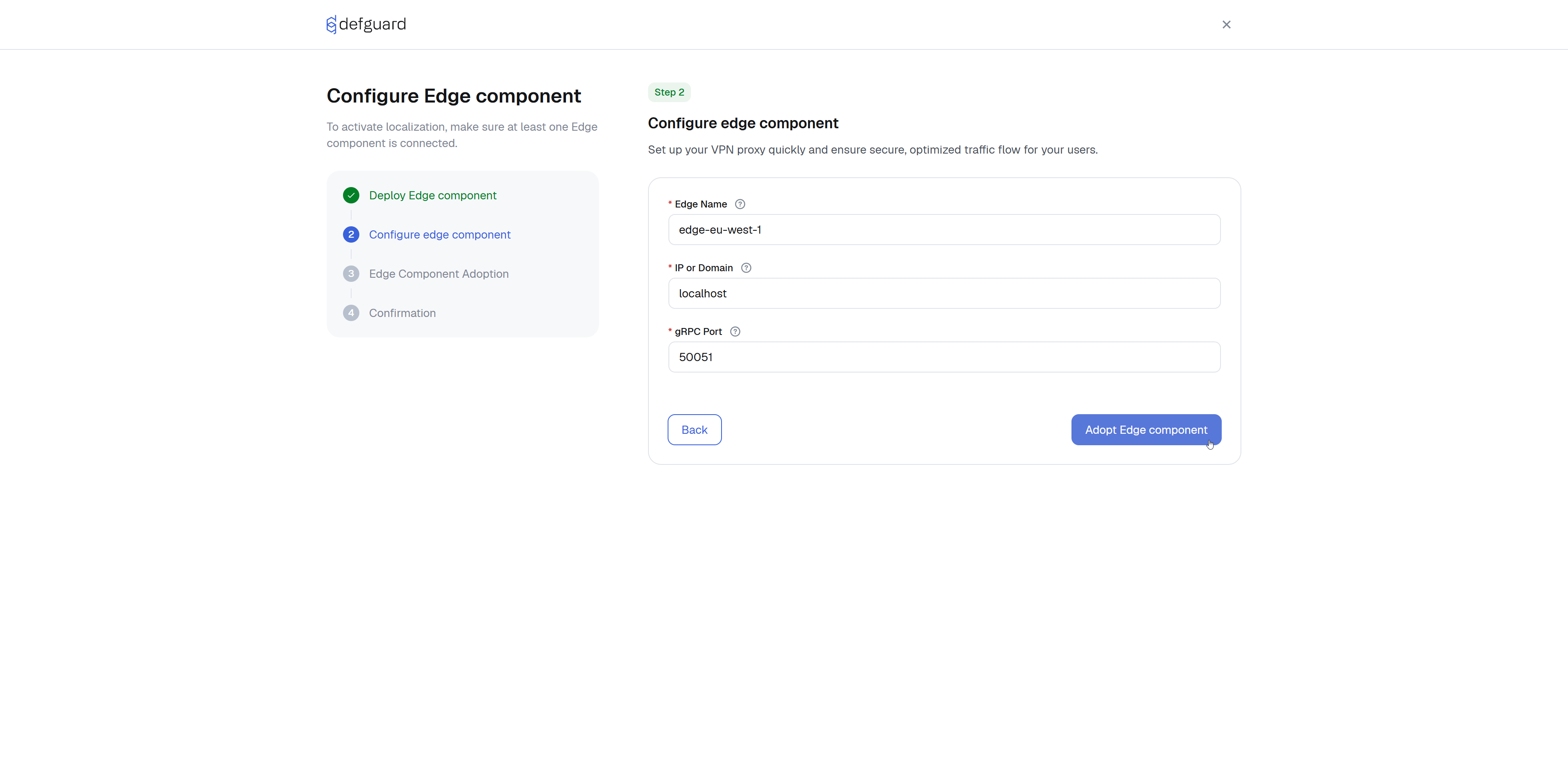

### Configure Edge component

This step registers the running Edge instance in Defguard Core.

| Field            | Description                                                                                              | Example                           |
| ---------------- | -------------------------------------------------------------------------------------------------------- | --------------------------------- |
| **Edge Name**    | A unique, human-readable identifier for this instance. Shown in the Edge Components list.                | `edge-eu-west-1`                  |
| **IP or Domain** | The IP address or hostname of the server where Edge is deployed. Core connects here to perform adoption. | `edge.example.com` or `10.0.1.50` |
| **gRPC Port**    | The port Edge listens on for gRPC. Change only if you modified the default.                              | `50051`                           |

> The Edge Name must be unique, the wizard will warn you if a component with the same name already exists.

When all fields are valid, click **Adopt Edge component**.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/ZODGxSPjWN4scWsVWH92/image.png" alt=""><figcaption></figcaption></figure>

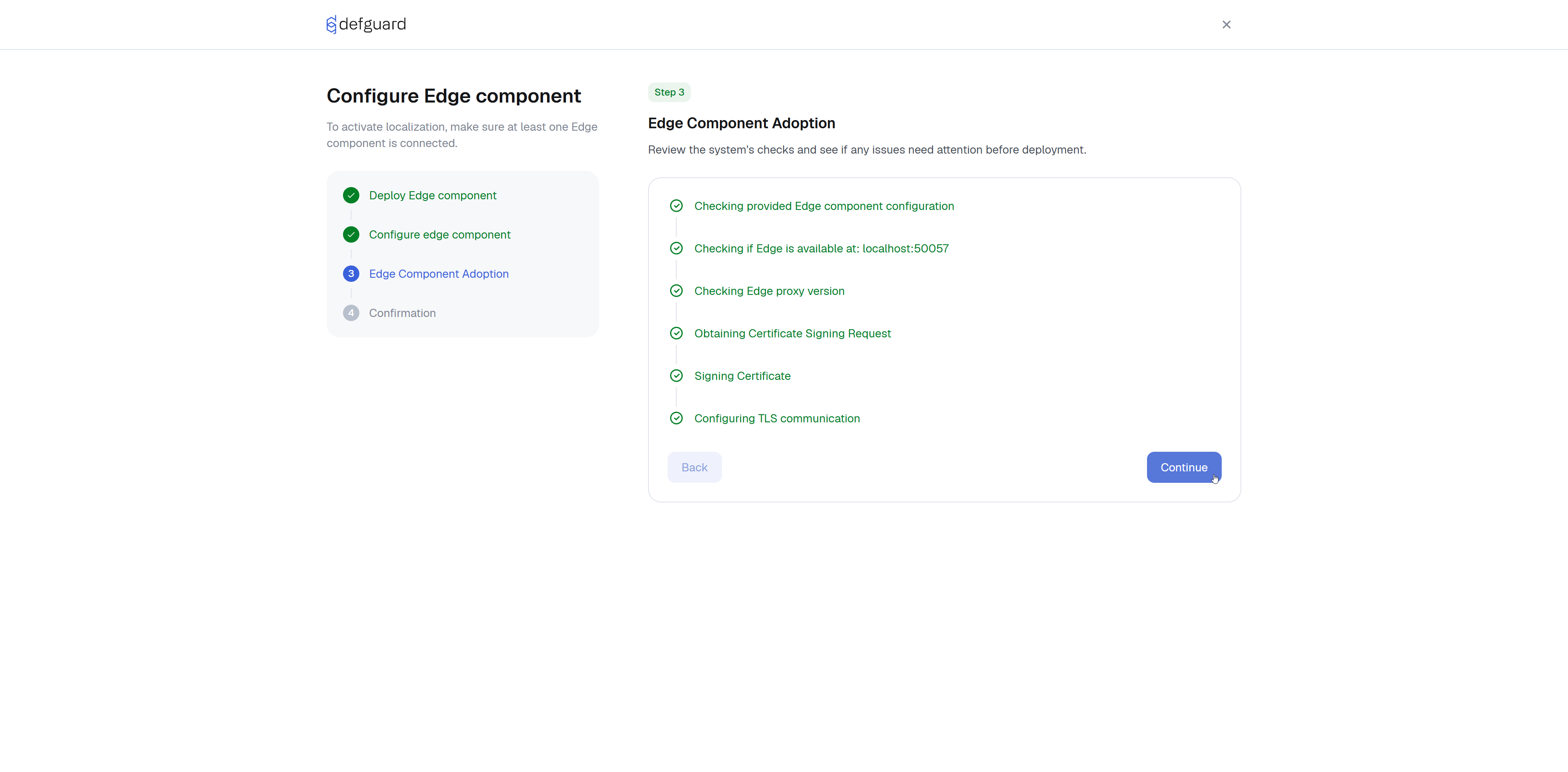

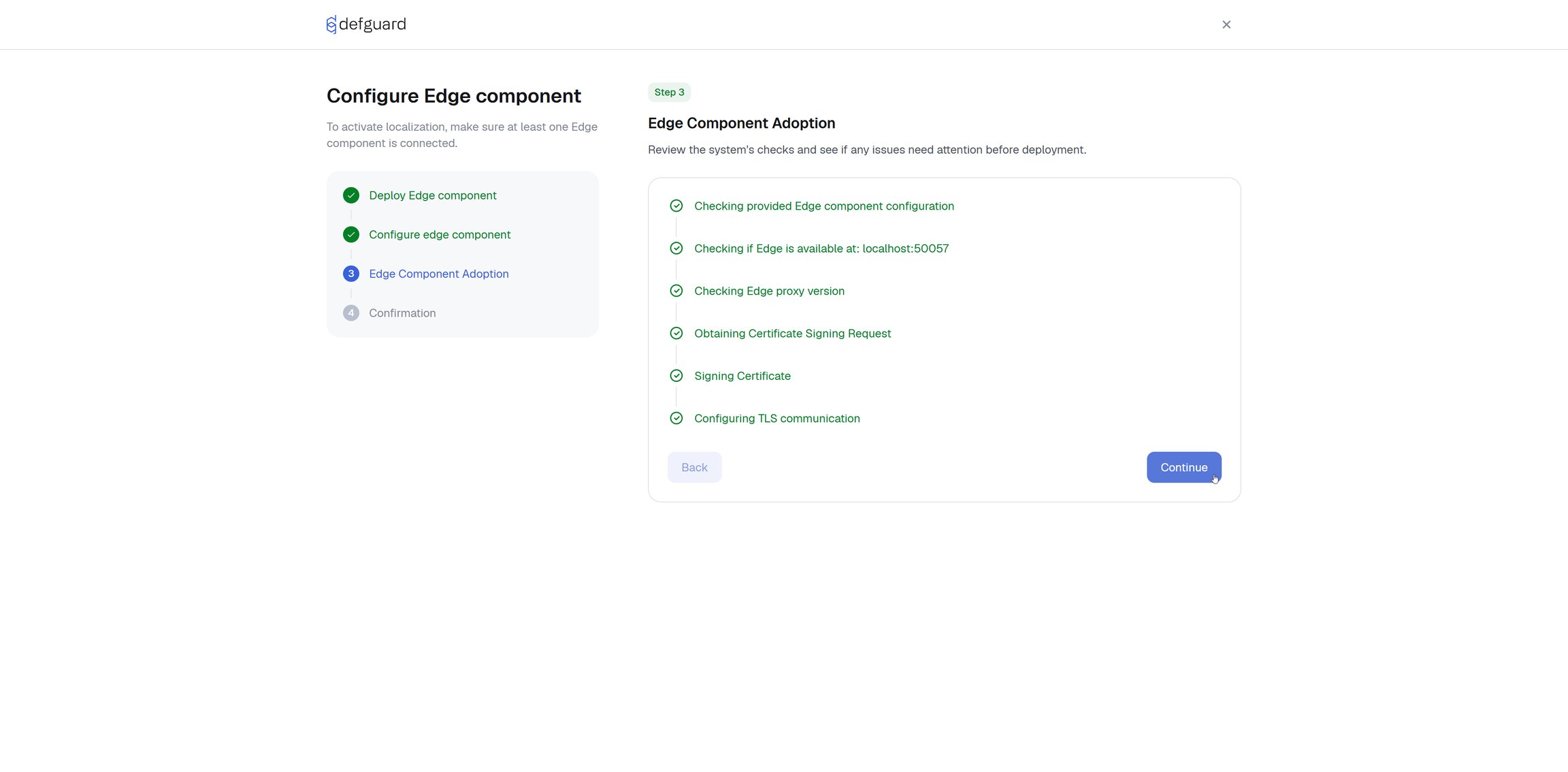

### Edge Component Adoption

Core now connects to the Edge service and performs automated adoption. The wizard shows live progress through each stage.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/7z427EHZLbNesmI8WZvf/image.png" alt=""><figcaption></figcaption></figure>

If any stage fails, an **error log** is shown and a **Retry** button becomes available. You can also click **Back** and correct the configuration from the pervious step.

Once all stages complete, click **Continue**.

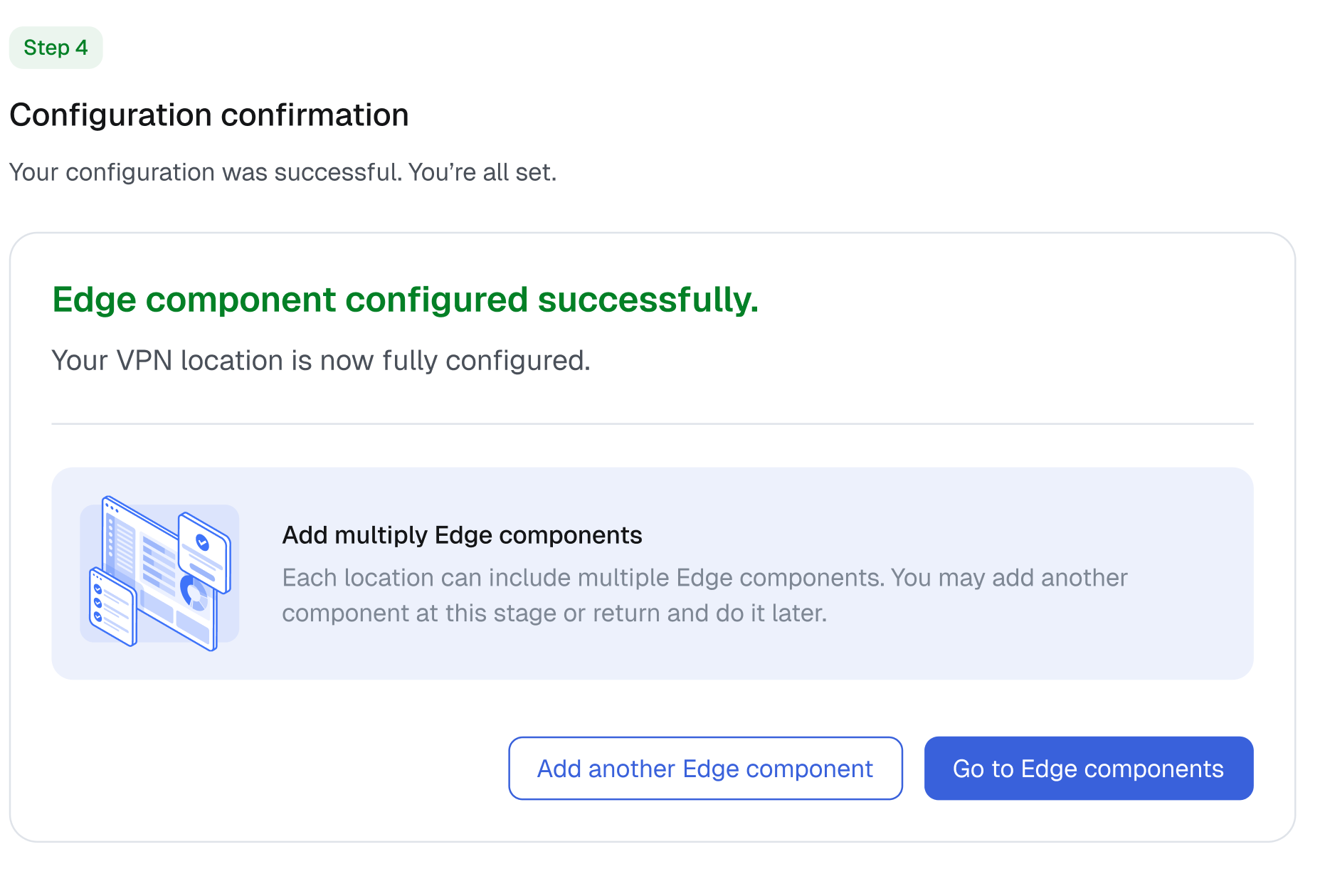

### Confirmation

Success! You’ve finished setting up the Edge component.

<figure><img src="https://content.gitbook.com/content/pE5yODhpiy5pT1XxY0BS/blobs/XScLXSB8BWp2G4KGrdrT/image.png" alt="" width="563"><figcaption></figcaption></figure>
