Running Gateway on OPNsense firewall

OPNsense plugin

OPNsense® is an open source, feature rich firewall and routing platform, offering cutting-edge network protection.

To start Defguard Gateway as OPNsense plugin:

1. On the release page find and download OPNsense package which will be named: defguard-gateway_VERSION_x86_64-unknown-opnsense.pkg – this package includes both Defguard Gateway and OPNsense plugin.

2. Install the package:

pkg add defguard-gateway_VERSION_x86_64-unknown-opnsense.pkg

1. Refresh your OPNsense UI by running command below:

opnsense-patch

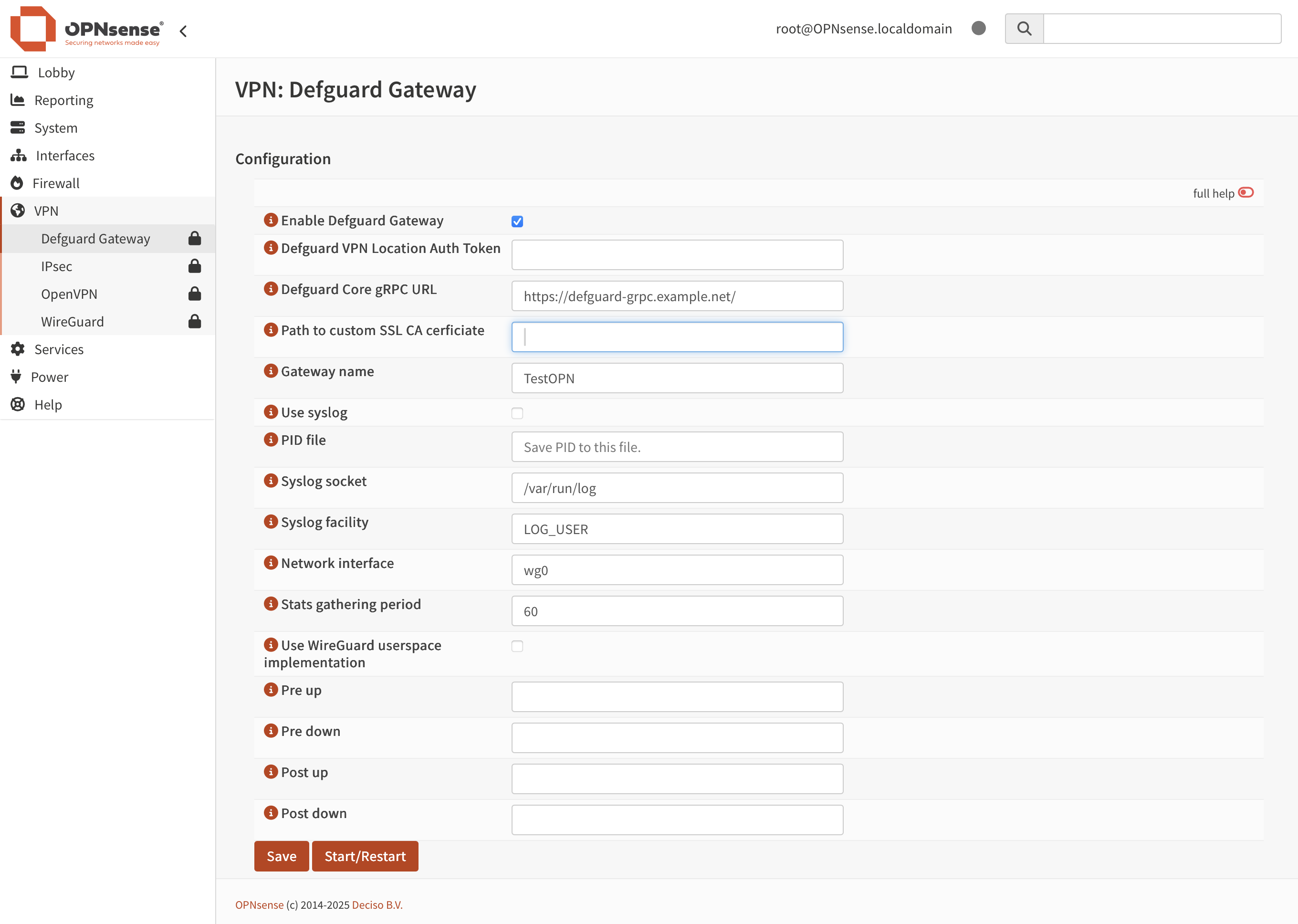

1. Go to your OPNsense UI and navigate to VPN → Defguard Gateway.

1. Fill out the form with appropriate values, click Save, and then click Start/Restart.

You can find detailed description of all fields here.

At this point the Gateway should be connected to Defguard Core. Before users can reach anything through it, OPNsense itself still needs an interface, a NAT rule and a firewall rule - continue with OPNsense network configuration.

OPNsense network configuration

The steps below are based on the WireGuard Road Warrior Setup from the OPNsense documentation.

Assign a network interface to Defguard

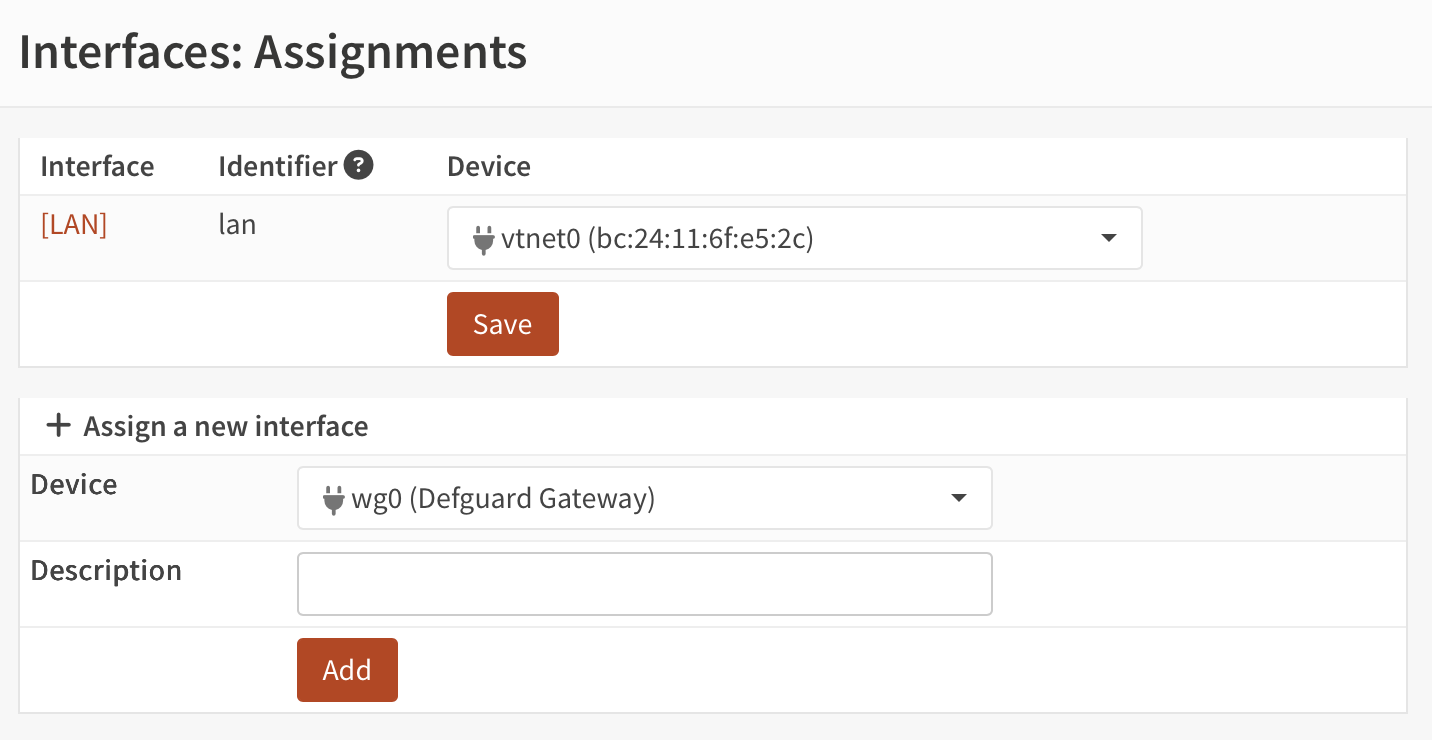

1. Go to Interfaces → Assignments

2. Under Assign a new interface, select the Defguard Gateway network interface (e.g. wg0)

3. Add a description, for example ParisOfficeVPN

4. Click Add

1. Select the newly create interface by clicking on its name (in this example [ParisOfficeVPN]).

2. Select Enable Interface

3. Select Prevent interface removal

4. Click Save, and then Apply changes

Create an outbound NAT rule

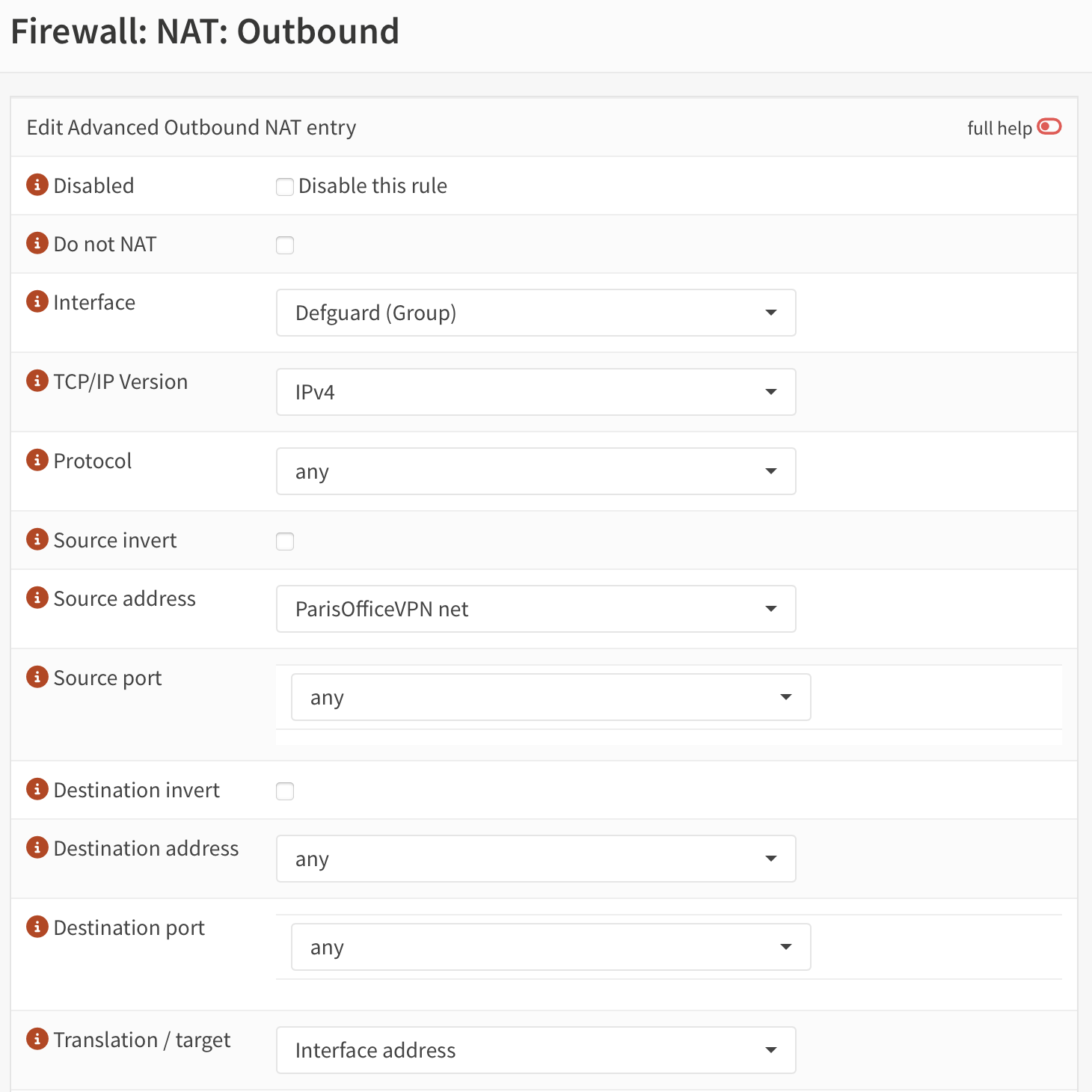

1. Go to Firewall → NAT → Outbound

2. Make sure the selected Mode is Hybrid outbound NAT rule generation; if it wasn't selected, click Save and then Apply changes

3. Under Manual rules, add a new rule by clicking +.

4. Select Interface – this should be either WAN or LAN, depending on the needs.

5. Select TCP/IP version – either IPv4 or IPv6.

6. Select Source address – this should be interface name assigned above plus net, e.g. ParisOfficeVPN net.

7. Click Save, and then Apply changes

Add firewall rules to allow WireGuard traffic in

1. Go to Firewall → Rules → WAN

2. Click + (plus) to add a new rule

3. The rule should Pass the traffic in with quick option enabled

4. Select WAN interface

5. Choose TCP/IP version of your desire

6. Select UDP protocol.

7. Set Destination to WAN address and port to the port number provided in Defguard Core: Location configuration → Gateway port

8. Click Save, and then Apply changes

Once this is done you can start adding new devices to your network.

Binary Install

Use this method if you are not running the OPNsense plugin.

1. Checkout Gateway releases here and download compatible binary from GitHub page.

2. Decompress and move to bin directory

tar xcf ./gateway.tar.gz
sudo chmod +x gateway
sudo mv gateway /usr/bin/

1. Start the gateway, pointing it at its configuration file:

gateway --config /etc/defguard/gateway.toml

1. Adopt the gateway in Defguard Core, as described in Adopt the Gateway component.
