One-line install script

One-line install script

Welcome to getting started with Defguard. This section guides you through setting up a simplified Defguard instance so you can get familiar with its features.

The instance deployed by the script serves as a starting point and makes some tradeoffs to enable automated setup. In general, it is not recommended for production. We strongly encourage you to customize it for your infrastructure using more advanced deployment strategies.

To simplify setup and enable automated deployment, we prepared a script that deploys a complete Defguard instance, including an enrollment Edge component and VPN Gateway.

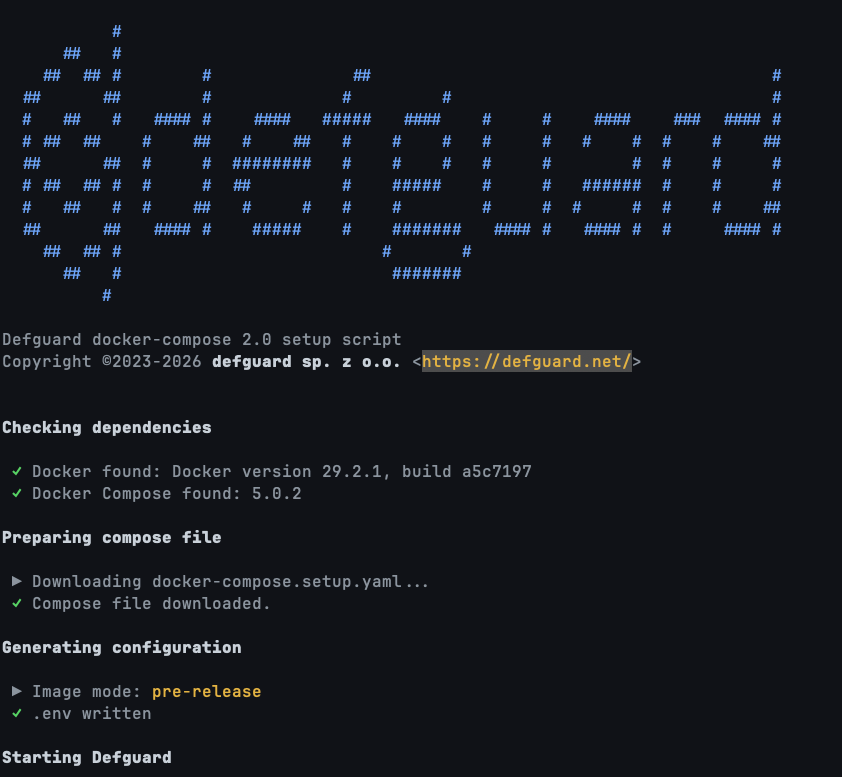

The command will automatically provision all Defguard components and perform an initial configuration. Once complete, a step-by-step wizard will guide you through the remaining setup in your browser.

Use one of the following commands to run the script:

Production Release (most stable)

bash <(curl -sSL https://raw.githubusercontent.com/defguard/deployment/main/docker-compose2.0/setup.sh)

Pre-release (latest alpha/beta/release candidate)

bash <(curl -sSL https://raw.githubusercontent.com/defguard/deployment/main/docker-compose2.0/setup.sh) --pre-release

If you used the installation script before and would like to upgrade to the pre-release version, you can update your .env file. It should be located next to the docker-compose.yml file created by the script:

CORE_IMAGE_TAG=pre-release
PROXY_IMAGE_TAG=pre-release
GATEWAY_IMAGE_TAG=pre-release

Running docker compose down and docker compose up -d afterwards should pull the correct images.

Downgrading to the production release may not be trivial afterwards because of the changes made to the database during the upgrade.

Latest development builds

bash <(curl -sSL https://raw.githubusercontent.com/defguard/deployment/main/docker-compose2.0/setup.sh) --dev

If you used the installation script before and would like to upgrade to the development version, you can update your .env file. It should be located next to the docker-compose.yml file created by the script:

CORE_IMAGE_TAG=dev
PROXY_IMAGE_TAG=dev
GATEWAY_IMAGE_TAG=dev

Downgrading to the production release may not be trivial afterwards because of the changes made to the database during the upgrade.

Running docker compose down and docker compose up -d afterwards should pull the correct images.

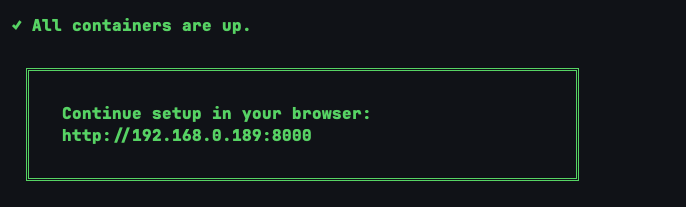

After the script finishes, open the displayed URL in your browser and continue with the provided instructions.

If you feel uneasy about running a shell script from the internet, inspect the source code first.

The script does the following:

• Prepares a Docker Compose file

• Automatically generates an .env file for the compose stack

• Creates a .volumes directory for persistent storage

• Automatically adopts all Defguard components (Edge and Gateway)

• Starts the compose stack

By default, the script enables masquerade on the Gateway container. This allows all traffic coming through the VPN to leave the container and reach any destination accessible from the host system. To disable this behavior, use the relevant configuration option or set up proper ACL/firewall rules.

Prerequisites

The script requires specific tools and a few infrastructure settings.

Tools

• bash

• openssl

• curl

• sed

• grep

• docker - we recommend official Docker Engine packages rather than packages shipped with distributions

• docker-compose - not required if you use Docker 20.10+ with the docker compose command

Environment setup and securing access

Deploy this setup on a bare-metal server or a virtual machine. It will not run inside an LXC container.

• A server with a public IP address, if you want Defguard to provision HTTPS certificates with Let's Encrypt

• A public domain/DNS record for Defguard Edge

• An internal domain/DNS record for Defguard Core

• Permission for Docker to bind to host ports 80 and 443. Sometimes this requires setting the net.ipv4.ip_unprivileged_port_start sysctl variable to 80

• Firewall rules:

  • Allow incoming traffic on the VPN UDP port chosen during the web wizard

  • Allow incoming traffic on one of the following ports:

    • If you chose NOT to provision HTTPS: TCP 8080

    • If you chose to provision HTTPS using self signed certificates or your own uploaded certificates: TCP 443

    • If you chose to provision HTTPS using Let's Encrypt: TCP 443 and TCP 80 (required for domain validation)

CLI options

Available options:
  --dev             use development images
  --pre-release     use pre-release images
  --no-masquerade   disable IP masquerade on the gateway
  --help            show this help and exit

Advanced deployment strategies

For more advanced deployment strategies, go to our deployment strategies section.
