> For the complete documentation index, see [llms.txt](https://docs.defguard.net/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.defguard.net/2.1/features/firewall.md). # Firewall {% hint style="warning" %} **Availability** This feature requires a Business or Enterprise plan. See the [pricing page](https://defguard.net/pricing/) for details. {% endhint %} {% hint style="warning" %} Access Control List feature is available starting with Defguard Core v1.3.0 and Defguard Gateway v1.3.0. Defguard Gateway v1.3.0+ supports Linux machines with [NFTables](https://nftables.org/).\ Defguard Gateway v1.4.0+ supports FreeBSD, NetBSD, and macOS machines with Packet Filter (PF). {% endhint %} {% embed url="" %} Defguard's Firewall module (also known as ACL - Access Control List) lets administrators control which users, groups, and devices can reach specific network resources over VPN. Rules are centrally managed in Core and pushed to gateways automatically. ### What is the Firewall Firewall rules define access to network resources for VPN-connected users and devices. Each rule answers a single question: ***who is allowed to access this destination?*** Rules are enforced at the gateway level. When a user connects to a VPN location and sends traffic to a resource, the gateway checks whether their device IP is permitted by a rule for that destination. If no rule covers the destination, the location's [default policy](#enabling-the-firewall) applies. ### How rules work Each firewall rule in Defguard is **self-contained**: it fully defines access for a single destination by generating two firewall rules on the gateway: * An **ALLOW** rule that permits traffic from the specified sources to the destination. * A **DENY** rule that blocks all remaining traffic to that destination. This has three important consequences: * **Order does not matter.** Rules do not depend on each other or on the sequence in which they appear in the list. * **The default policy does not affect rules.** A rule produces the same result regardless of the location's default policy setting. See [Enabling the Firewall](#enabling-the-firewall). * **Rules are portable.** A rule assigned to multiple locations produces identical access behaviour on each. When multiple rules cover overlapping destinations, their allowed sources combine. All **ALLOW** rules are evaluated before any **DENY** rule on the gateway, so traffic permitted by any matching rule for a destination will get through. ### Permissions and Restrictions The source side of a rule is divided into two parts: **Permissions** define who is granted access. The sources listed here form the **ALLOW** firewall rule. You can permit specific users, groups, and network devices, or use the **All X have access** toggle to permit all entities of a given type at once. **Restrictions** define exceptions removed from the permitted set. Restricted sources are subtracted from the permitted set before the **ALLOW** rule is generated. For each entity type you can restrict all entities or only specific ones. The final ALLOW rule covers: ``` (permitted sources) minus (restricted sources) ``` The **DENY** rule always blocks all remaining traffic to the destination - it is a blanket rule and does not reference specific sources. {% hint style="warning" %} If the subtraction produces an empty source list - for example, all permitted groups have also been restricted - no **ALLOW** rule is generated. The destination becomes completely blocked for everyone. This is because creating an **ALLOW** rule without a specified source would allow all traffic. {% endhint %} ### Default Policy The default policy controls how traffic is handled when it does not match any rule's destination. It is configured per location as part of the Firewall setting (see [Enabling the Firewall](#enabling-the-firewall)): * **Default Allow** - users and devices can access all resources unless limited by a firewall rule. * **Default Deny** - all traffic not explicitly allowed by a firewall rule will be blocked. **The default policy has no effect on traffic that is covered by a rule.** Rules always produce their own **ALLOW** and **DENY** pair regardless of this setting. ### Rules and Locations Each rule is assigned to one or more locations. A rule only applies to VPN traffic within its assigned locations. Alternatively, enabling the **All locations** toggle makes the rule apply everywhere - useful for organisation-wide access policies. **Firewall rules govern resource access within a VPN tunnel. They do not control access to the VPN location itself.** Location access - which users and groups can establish a connection to a given location - is managed separately through the location's [Allowed Groups](/2.1/features/wireguard/create-your-vpn-network.md#allowed-groups) setting. A user must satisfy both conditions to reach a protected resource: 1. They must have VPN access to the location (Allowed Groups). 2. They must be permitted by a firewall rule for that destination. ### Enabling the Firewall The Firewall is configured per location. To enable it, open the location's settings and set the **Firewall** option to one of: * **Disable firewall** - the Firewall is off for this location. No rules are enforced and all traffic is permitted. * **Default Allow** - the Firewall is active. Traffic to destinations not covered by any rule is permitted. * **Default Deny** - the Firewall is active. Traffic to destinations not covered by any rule is blocked.

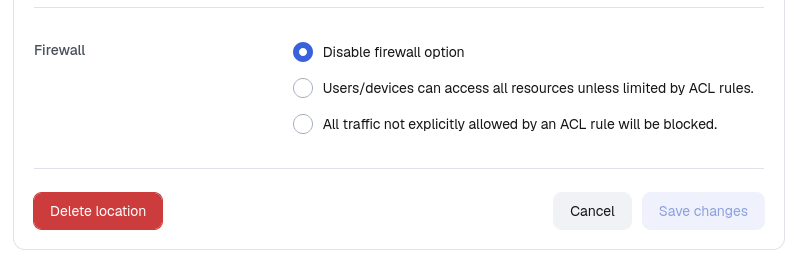

{% hint style="info" %} **Default Deny** is the recommended setting for production environments. It ensures that only explicitly permitted traffic can reach resources, regardless of whether a rule has been defined for every destination yet. {% endhint %} ### Anatomy of a rule

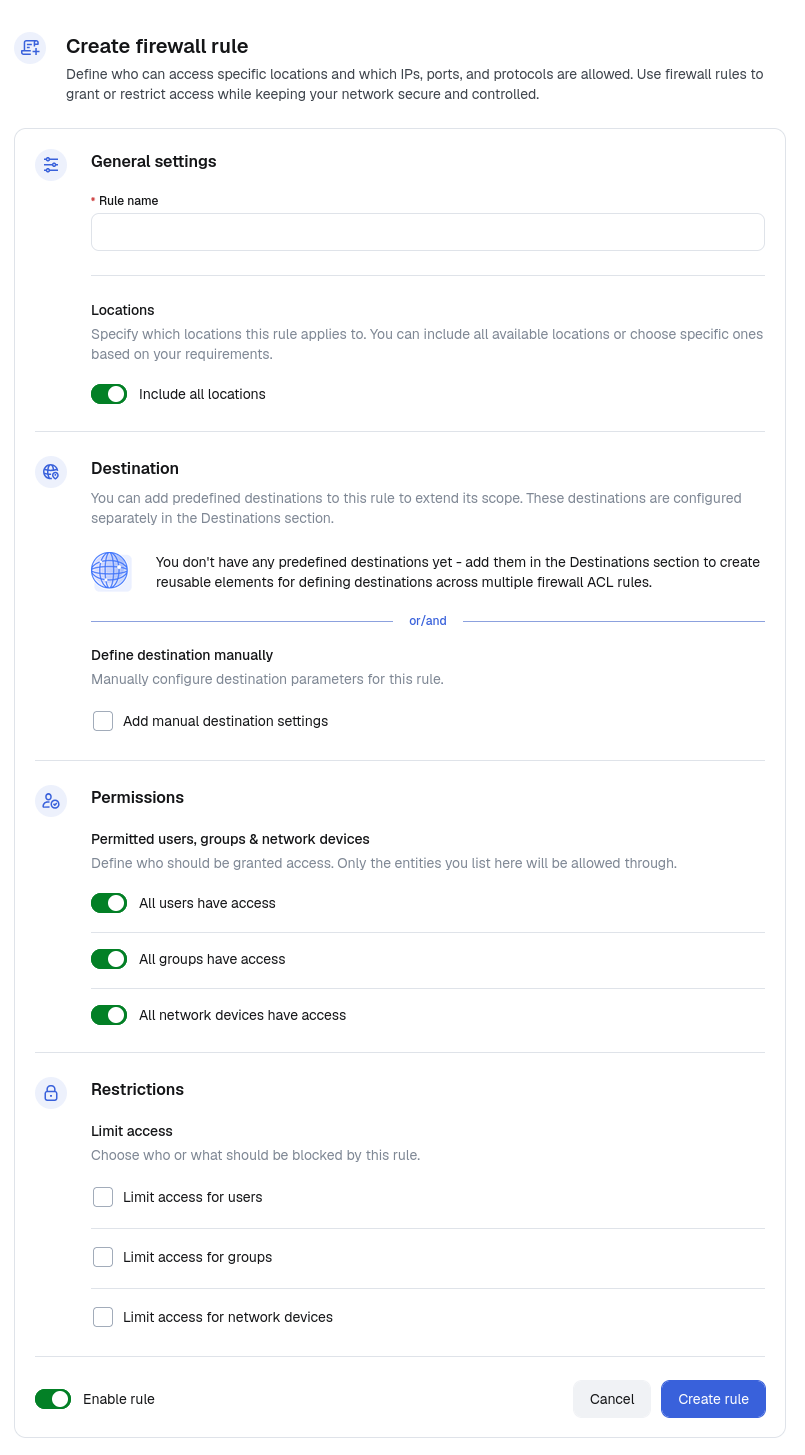

#### Basic configuration * **Rule name** - a descriptive label used to identify the rule in the list and in gateway firewall comments. * **Locations** - one or more locations the rule applies to. Enable **All locations** to apply the rule across every location. * **Enabled** - when disabled, the rule is not included in the firewall configuration pushed to gateways. {% hint style="warning" %} Disabling a deployed rule creates a **pending change**. The rule remains enforced on gateways until the pending change is deployed. See [Managing rules](#managing-rules). {% endhint %} #### Destination The destination section defines the network resource the rule applies to.

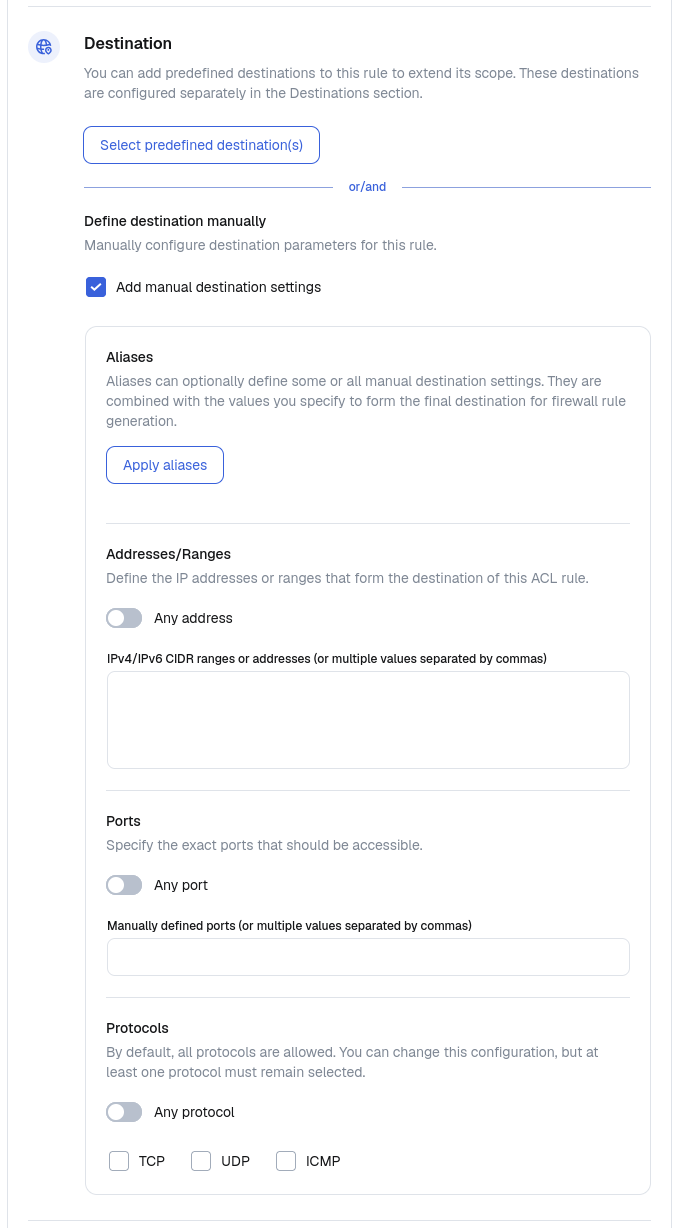

**Add manual destination settings** - when checked, you define destination parameters directly in the form. When unchecked, only [Destinations](/2.1/features/firewall/aliases-and-destinations.md) attached to this rule define the target. When manual settings are enabled, all three destination fields - address, port, and protocol - are required. Each must be provided via explicit input, its **Any** toggle, or an [Alias](/2.1/features/firewall/aliases-and-destinations.md) attached to the rule that covers that dimension. * **Addresses/Ranges** - one or more IPv4/IPv6 addresses, CIDR ranges, or IP ranges, comma-separated. Examples: `10.1.1.0/24`, `10.2.1.10-10.2.2.100`, `fd00:1000::/64`. Enable **Any address** to match all destinations - useful when the rule should restrict protocols or ports regardless of destination IP. * **Ports** - TCP/UDP ports or port ranges, comma-separated. Examples: `22`, `8000-9000`, `80, 443`. Enable **Any port** to match all ports. * **Protocols** - TCP, UDP, or ICMP. Enable **Any protocol** to match all protocols. **Aliases and Destinations** - reusable destination definitions that can be shared across multiple rules. An **Alias** contributes additional address, port, and protocol parameters to this rule's manual destination. A **Destination** acts as a fully independent target and generates its own **ALLOW** and **DENY** firewall rules. See [Aliases and Destinations](/2.1/features/firewall/aliases-and-destinations.md) for full details. {% hint style="info" %} ACL rule destinations can also be used to **automatically populate Allowed IPs** in client WireGuard configs. See [Generate Allowed IPs from Firewall Rules](/2.1/features/wireguard/create-your-vpn-network.md#generate-allowed-ips-from-firewall-rules) for details. {% endhint %} #### Permissions and Restrictions

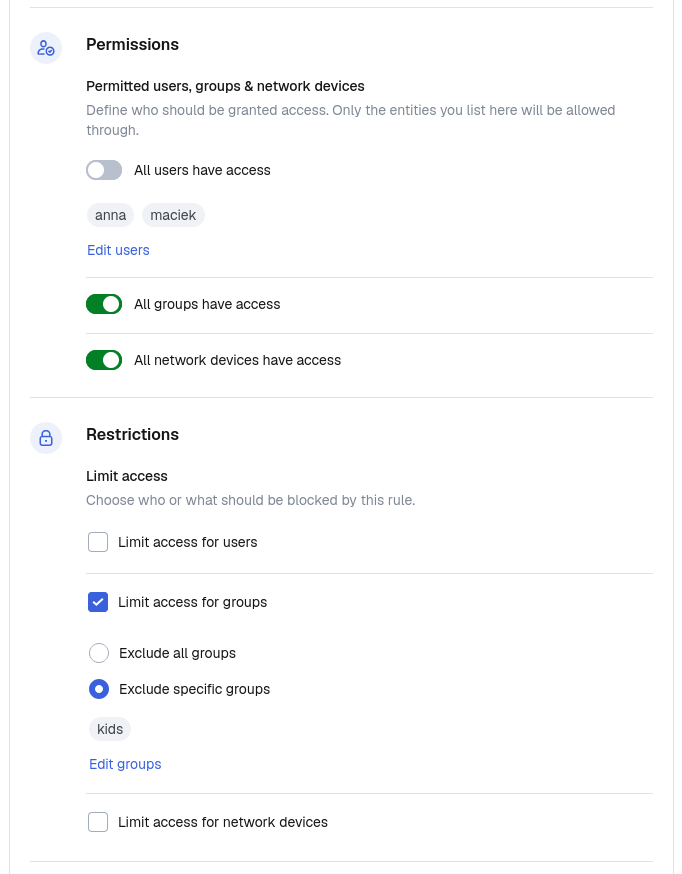

**Permissions** - define who is granted access to the destination. For each entity type (users, groups, network devices), either enable the **All X have access** toggle to permit every entity of that type, or select specific entities. At least one permitted source must be specified. **Restrictions** - define exceptions from the permitted set. For each entity type, check **Limit access for X** to enable restrictions, then choose: * **Exclude all** - remove all entities of that type from the permitted set. * **Exclude specific** - remove selected entities from the permitted set. ### Managing rules

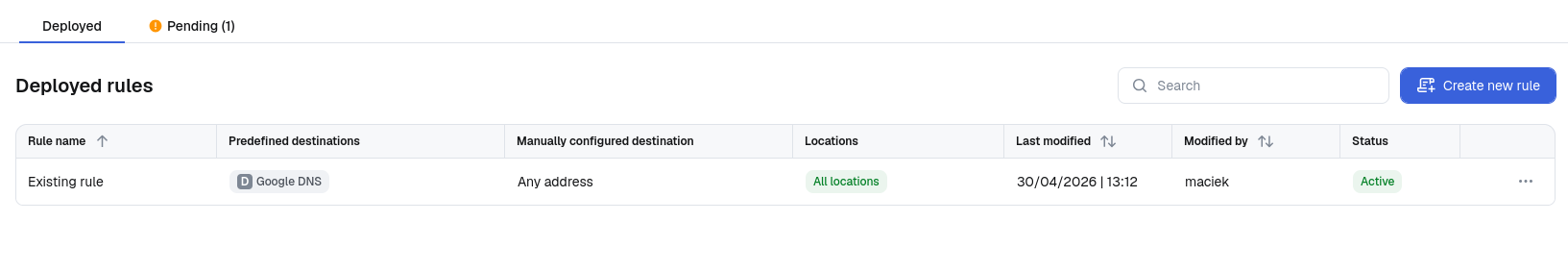

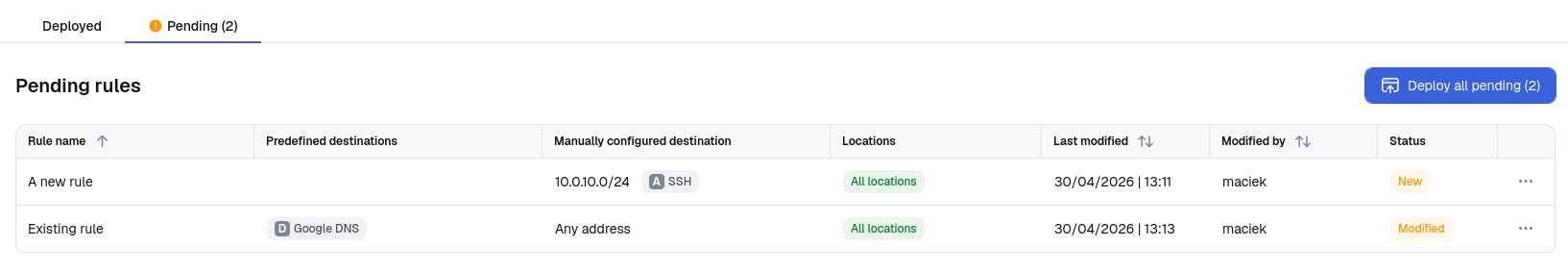

All changes to rules - creating, editing, disabling, and deleting - are staged as **Pending Changes** and do not take effect on gateways until explicitly deployed. The rule list is split into two sections: * **Deployed Rules** - rules currently active on their assigned locations. * **Pending Changes** - staged changes awaiting deployment, including new rules, edits to existing rules, rules being disabled, and deletions. Use the **Deploy pending changes** button to push all staged changes to affected gateways at once. Deploying in batches reduces the risk of transient firewall disruptions compared to applying changes one at a time. {% hint style="warning" %} **Eventual consistency** - Defguard does not track rule application status per individual gateway. If a gateway loses connectivity to Core at the time of deployment, the updated configuration will not be propagated immediately. Rules will be applied once the connection is restored. {% endhint %} ### Examples #### Granting access to specific users **Goal:** Allow two specific users to reach an internal server at `10.1.1.50` through the *Office-Berlin* location. Create a rule assigned to *Office-Berlin*, with destination `10.1.1.50` and the two users selected in Permissions. Once deployed, those users' device IPs are permitted to reach `10.1.1.50`. All other traffic to that address is blocked by the **DENY** rule. #### Using groups with exceptions **Goal:** Allow all members of the *Staff-Berlin* group to access `10.1.1.0/24`, except members of the *Contractors* group. Create a rule with destination `10.1.1.0/24`, the *Staff-Berlin* group permitted, and a restriction excluding the *Contractors* group. Members of *Contractors* who are also in *Staff-Berlin* are subtracted from the permitted set and will not appear in the **ALLOW** rule. This approach scales well: adding a new employee to *Staff-Berlin* grants them access automatically, and any contractor added to *Contractors* is excluded without modifying the rule. #### Using a Destination for a named service **Goal:** Grant access to a PostgreSQL server at `10.2.0.38:5432` from multiple rules without repeating the address and port configuration in each. First, create a Destination called *PostgreSQL - Analytics DB* with address `10.2.0.38`, port `5432`, and protocol TCP. See [Aliases and Destinations](/2.1/features/firewall/aliases-and-destinations.md). Then add *PostgreSQL - Analytics DB* in the Destinations field of any rule that should grant access to that server. Each rule that includes it gets its own independent **ALLOW** and **DENY** pair for `10.2.0.38:5432`, with sources taken from that rule's Permissions. Updating the Destination's address or port in one place updates it for every rule that uses it. #### Restricting access by port and protocol **Goal:** Allow all users to reach a web server at `10.3.0.10`, but only on port 443 over TCP - blocking all other ports and protocols on that address. Create a rule with destination `10.3.0.10`, port `443`, protocol **TCP**, and **All users have access** enabled in Permissions. Because port and protocol are explicitly set, the **ALLOW** rule only permits TCP/443 traffic. The **DENY** rule blocks all other traffic to `10.3.0.10`, including other ports and protocols. #### Using an Alias **Goal:** Reuse a standard HTTPS port-and-protocol restriction across multiple rules without repeating the configuration. Create an Alias called *HTTPS* with port `443` and protocol TCP. See [Aliases and Destinations](/2.1/features/firewall/aliases-and-destinations.md). In a rule targeting `10.3.0.10`, add the *HTTPS* alias with no ports or protocols set in the manual destination (the **Any address/Any port** toggles should be disabled to not override the alias). The alias contributes port `443` and protocol TCP to the rule's destination settings, making the effective destination `10.3.0.10:443/TCP`. The same *HTTPS* alias can be added to any other rule to apply the same restriction there too.
