OVA

Defguard provides OVA images that can be imported into VMware, Proxmox, or any other solution that supports the standard OVA format. The image is based on Ubuntu 24 and supports configuration via cloud-init. It contains the full Defguard stack (Defguard Core, Edge, Gateway) and a database.

The latest image can be downloaded here: https://defguard-downloads.s3.eu-central-1.amazonaws.com/ova/defguard-latest.ova

Importing the image

After importing the image, make sure to:

  1. Attach an appropriate network interface so the virtual machine can access your network.

  2. If you would like to change default user/password you can do so with cloud-init - if not, default user ubuntu with pass ubuntu will be created.

If you're importing the OVA into VMware, the image ships with open-vm-tools pre-installed, which enables graceful shutdown, guest IP reporting, and time sync with the host.

Setting up Defguard

Once booted, the virtual machine will have all Defguard components pre-configured. To complete the setup, simply visit the Defguard Core dashboard: http://<VM_IP_OR_DOMAIN>:8000. Follow the on-screen wizard to finalize your configuration.

If you would like to configure a domain and automated SSL certificates via Let's Encrypt beforehand, go to this section for more details.

Accessing the VM

You can access the VM using the following default credentials (requires changing after first login):

Login

ubuntu

Password

ubuntu

Verifying the running Defguard stack

When booting the machine for the first time, the whole Defguard stack will be launched using Docker Compose. All Defguard files (Docker compose, environment variables) can be found under the /opt/stacks/defguard/ directory.

On first boot, the VM generates a random database password into .env and starts the stack; this typically completes within about a minute. If the dashboard isn't reachable yet, or you want to confirm what happened during first boot, check the startup log:

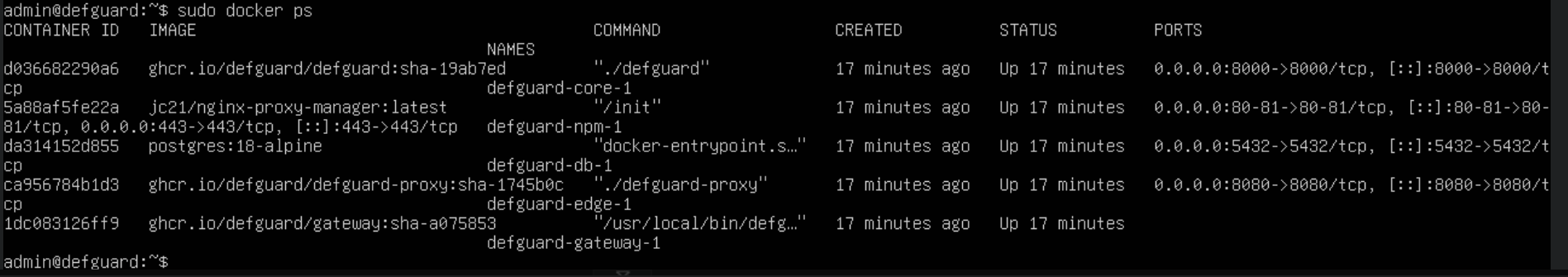

To verify that Defguard is running, use the following command inside the VM:

Here is the breakdown of accessible services deployed on the VM:

Name
Port
Type

Core

8000

HTTP (web dashboard)

Edge

8080, 80, 443

HTTP (enrollment portal) and HTTP(S) once a domain and SSL are configured

Gateway

51820

UDP (VPN port)

Dockge (if enabled, see below) additionally exposes its management dashboard on port 5001.

VPN client internet access

The OVA runs Gateway on a host that also runs Docker. If VPN clients should reach the internet through the VM, you usually need all of the following:

  • IP forwarding enabled on the host, for both IPv4 and IPv6.

  • A masquerade rule for the VPN subnet.

  • DOCKER-USER allow rules for the WireGuard interface when Docker sets FORWARD to drop.

For manual host configuration, the required iptables rules look like this:

Replace wg0, <VPN_SUBNET>, and <EGRESS_INTERFACE> with values from your deployment.

Docker enables net.ipv4.ip_forward itself, but not IPv6 forwarding. If your deployment routes IPv6 traffic through the VPN, also set net.ipv6.conf.all.forwarding = 1 on the host.

These host firewall rules are not persistent by default. On the OVA, save them with:

The OVA itself applies the DOCKER-USER rules automatically at every boot, once Docker is up. Because the DOCKER-USER chain only exists after the Docker daemon has finished starting, the OVA's firewall service waits briefly for it to appear; if Docker isn't ready in time, the service exits cleanly and the rules are re-applied on the next boot. If VPN clients briefly can't reach the internet right after a boot but everything works after a reboot, this ordering is the likely cause, see Troubleshooting below.

If you prefer Defguard Gateway to manage the source NAT automatically, enable DEFGUARD_MASQUERADE=true for the Gateway service and redeploy the stack. This is usually the simplest option for the OVA.

For the generic routing and troubleshooting guidance, see Can access VPN but not local network or internet.

Kernel and network tuning

The OVA ships with WireGuard-oriented kernel tuning applied out of the box, sized for the baseline 2 vCPU / 2 GB appliance and up to roughly 100 active devices:

  • BBR congestion control (net.ipv4.tcp_congestion_control = bbr) to reduce bufferbloat.

  • Enlarged UDP socket buffers (net.core.rmem_max / wmem_max = 16777216), since WireGuard is UDP-based and the OS defaults are too small for 1 Gbps+ links.

  • A larger kernel input queue and accept queue (net.core.netdev_max_backlog = 5000, net.core.somaxconn = 8192) to absorb traffic bursts.

  • An increased connection-tracking table (net.netfilter.nf_conntrack_max = 131072) for VPN egress/masquerade.

If you scale the VM beyond the baseline (more CPU/RAM for more concurrent devices), consider raising nf_conntrack_max and the socket buffer sizes accordingly. See Linux kernel WireGuard tuning for the full background on these parameters.

Resource sizing

The OVA defaults to 2 vCPU, 2 GB RAM, and a 20 GB disk, which comfortably supports up to roughly 100 active WireGuard devices. This is a baseline, not a hard limit, so as a rule of thumb, plan for additional CPU and RAM as the number of active devices grows well beyond that, similar to the guidance in Hardware, OS, network and firewall recommendations. vCPU/RAM can be resized after first boot through your hypervisor; disk usage should be monitored as the database and logs grow.

Getting logs

You can access all components logs by remote access via SSH and in the Dockage UI.

Accessing logs via SSH

To access logs for all components access the VM via SSH (see above) and:

Container logs are also persisted to the systemd journal with a per-component tag, so they survive container restarts/recreation and can be filtered per component:

Add -f to follow, or --since "10 min ago" to bound the time range.

Accessing logs via Dockage

  1. Enable Dockage (see chapter below).

  2. Choose "defguard" in the left menu.

  3. Go to the UI to the "Terminal" section:

Setting up SSL

Defguard Edge terminates HTTP/HTTPS directly on ports 80/443 and can automatically obtain certificates from https://letsencrypt.org/ (or use your own certificates instead) - no separate reverse proxy container is bundled on the OVA.

You'll need a public domain pointed at the VM for Defguard Edge. Defguard Core does not need to be publicly reachable, it does not need a public domain either. See Architecture for details.

Domain and certificate configuration is done from the Defguard Core dashboard, not on the VM itself: set Edge's public domain in Core's settings, and Core will trigger the Let's Encrypt HTTP-01 challenge (over port 80) and push the issued certificate to Edge automatically. If you'd rather use your own certificate, upload it in Core instead of enabling Let's Encrypt.

Please make sure you don't expose Defguard Core publicly.

If you still want to put your own reverse proxy in front of the OVA (for example to centralize TLS termination for several services), you can do so, but you'll need to deploy and manage it yourself; it is not part of the OVA image.

Managing and updating containers

OVA 2.1+ images ship with dg-ctl, a maintenance CLI installed at /opt/defguard/dg-ctl (also symlinked onto $PATH) that handles upgrades, backups, rollbacks and health checks for the OVA stack.

Running an older OVA that predates dg-ctl? Install it with:

Upgrading

This fetches the recommended image tags and compose template from the release manifest, creates a rollback point, updates .env and docker-compose.yml, pulls the new images, restarts the stack, and runs health checks. If the upgrade or its health checks fail, dg-ctl automatically attempts to restore the pre-upgrade backup; if that recovery fails, use sudo dg-ctl rollback <backup-id>.

Some releases ship a structural migration (e.g. moving/renaming data under /opt/stacks/defguard) alongside the usual tag/template bump. dg-ctl upgrade fetches and runs these automatically after the pre-upgrade backup, while the stack is stopped. Failed migrations and upgrades trigger an automatic rollback when a backup is available. With --no-backup, no rollback point exists, although the stack is still stopped for migration safety.

Upgrading older OVAs

OVAs that predate dg-ctl or the simplified OVA layout can be upgraded in place. After installation, run:

The upgrade detects the legacy layout, preserves the selected components and Dockge setting, and converts the host to the current docker-compose.yml and /opt/stacks/defguard/init/ layout. It also preserves whether the host is a full all-in-one deployment or a segmented deployment. For safety, legacy upgrades require /etc/systemd/system/defguard-init.service so the startup unit can be included in the rollback point.

Useful options:

Option
Effect

--core-tag / --proxy-tag / --gateway-tag T

override a component's tag instead of the manifest default

--ref REF

use the compose template from a specific branch/tag

-y, --yes

skip the confirmation prompt

--no-backup

skip the pre-upgrade backup and automatic rollback point (not recommended)

--skip-tests

skip the post-upgrade health checks

Backups and rollback

Backups include the volumes, stack and OVA structure, .env, the generated Compose file, image digests, and the defguard-init.service unit when present. dg-ctl upgrade takes a backup automatically before making any changes, and prunes old ones afterward, keeping the 3 most recent (configurable with the KEEP_BACKUPS environment variable).

Checking version and health

Updating manually

If you'd rather not use dg-ctl, you can still update containers by hand from the /opt/stacks/defguard directory:

This can also be achieved without accessing the VM using the Dockge dashboard, refer to this section for more information.

To pin specific component versions manually, edit the .env file found in /opt/stacks/defguard:

Then use the same docker compose command as above to update the running containers.

Cloud-Init options

Selecting what components to run (Proxmox)

As mentioned previously, the VM starts the full stack by default. If you would like to separate the components (which is the recommended way of deploying Defguard), you can use custom cloud-init configuration to specify which component to run for a given VM instance.

Create the following snippet. The content can be core, edge, or gateway:

In Proxmox, save the snippet to (or your selected snippet directory, if you are using a non-standard one):

Then attach it to the VM on which you want to run the selected Defguard component:

Next, boot the VM. Now, only the selected component should run.

Here is the full breakdown of what runs for each profile:

Profile
What runs

core

Core, database

edge

Edge

gateway

Gateway

Using different solution that Proxmox will require creating a custom cloud-init that will write one of the profiles above to the /opt/stacks/defguard/active-profiles file.

The write_files snippet itself is standard cloud-init user-data and isn't Proxmox-specific. The same pattern works on AWS, Azure, or any other platform that supports cloud-init; only the way you deliver the user-data (a Proxmox snippet vs. a provider's user-data field) differs.

After first boot, the OVA records the applied profiles and deployment mode under /opt/stacks/defguard/init/. dg-ctl upgrade uses those records when regenerating Compose, so upgrades preserve the selected components and full/segmented network behavior.

active-profiles is only read once, on first boot: the VM flattens it into /opt/stacks/defguard/docker-compose.yml and then deletes active-profiles (same for enable-docker-management, see Dockge). Attach your cloud-init snippet before first boot. To change the selected components afterward, write the new active-profiles file yourself, then:

For a segmented deployment (edge or gateway alone, without core on the same VM), Core's automatic adopt targets for Edge/Gateway are left blank in .env since they live on other VMs; set DEFGUARD_ADOPT_EDGE and DEFGUARD_ADOPT_GATEWAY there yourself before starting Core. This only applies to the segmented case, on a full all-in-one VM they're filled in automatically.

Dockge

You can additionally enable Dockge to easily manage and update all Defguard containers. To do so, add the following to your cloud-init snippet (this was explained more in-depth in the Selecting what components to run (Proxmox) section):

After the virtual machine starts, Dockge dashboard should be available at http://<VM_IP_OR_DOMAIN>:5001 . Access it in order to create a Dockge admin account.

Updating containers with Dockge

If you've enabled Dockge you can use it to update the running containers by opening the dashboard, selecting the defguard stack and clicking Update:

To set a specific Docker image tag you can instead click the Edit button, then scroll down to the .env section and edit the highlighted environment variables:

Once the variables are set you can scroll back up and click the Deploy button:

Backup

The simplest way to back up or restore the OVA stack is sudo dg-ctl backup / sudo dg-ctl rollback <id>, see Backups and rollback above. If you back up manually, include the application state under /opt/stacks/defguard/ as well as the OVA metadata and startup unit:

  • .env – generated secrets (database password, image tags). Losing this without a backup means the database password no longer matches unless you regenerate it consistently.

  • .volumes/db – the PostgreSQL database. Prefer a regular pg_dump over a filesystem-level copy, consistent with the general backup strategy.

  • .volumes/certs/* – the SSL certificates used to secure and authenticate communication between Core, Edge, and Gateway. These are issued by Defguard's internal CA and are not stored in the database, so they must be backed up separately.

  • /opt/defguard/state.json – the installed OVA version, template reference, image tags and applied migrations used by dg-ctl.

  • /opt/defguard/backups/ – local rollback points, if you rely on dg-ctl rollback after a failure.

  • /etc/systemd/system/defguard-init.service – the OVA startup unit, especially important when migrating a legacy layout.

Troubleshooting

VPN clients can't reach the internet right after boot, but it works after a reboot. The OVA applies DOCKER-USER forwarding rules automatically once Docker is ready; on a slow boot this can race Docker's startup. Check /var/log/defguard-startup.log for a DOCKER-USER chain not present message, and see VPN client internet access above.

SSL certificate errors. Confirm Edge's domain is set correctly in Core as described in Setting up SSL, that DNS for that domain resolves to the VM, and that the automatic Let's Encrypt HTTP-01 challenge on port 80 isn't blocked by an upstream firewall.

Changed active-profiles but nothing happened. It's only applied when /opt/stacks/defguard/docker-compose.yml doesn't exist yet (first boot). To change the running components afterward, write the new active-profiles file, remove docker-compose.yml, and restart defguard-init.service, see Selecting what components to run. dg-ctl upgrade preserves the profiles recorded under init/.applied-profiles; change the selection before the next upgrade. Image tags in .env don't have this restriction, see Updating manually.

Dockge dashboard isn't reachable at port 5001. Dockge is opt-in: confirm the enable-docker-management file was written via cloud-init as described in Dockge, and that the VM has finished booting.

Dashboard doesn't come up after first boot, or .env looks wrong. Check /var/log/defguard-startup.log for errors from secret generation or stack startup, and confirm sudo docker ps shows all expected containers.

dg-ctl upgrade fails health checks. With the default settings, dg-ctl automatically attempts to restore the pre-upgrade backup. If automatic rollback fails, run sudo dg-ctl rollback <backup-id> manually. When --no-backup was used, no automatic rollback is possible; inspect the stack and logs (journalctl -t defguard-core, etc.) before retrying.

dg-ctl: command not found. Your OVA predates dg-ctl; install it with the command in Managing and updating containers above.
