High Availability and Failover

Gateway - High Availability

We support running multiple gateways within a single VPN location to achieve high availability. This configuration requires an Enterprise License.

Deploying multiple gateways for one location

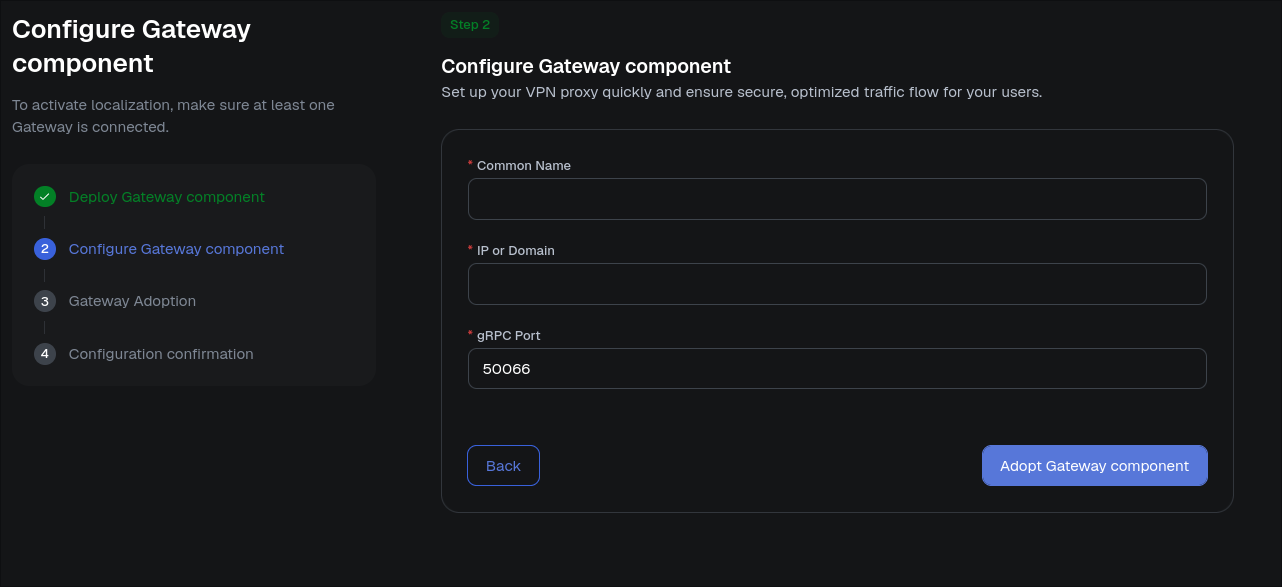

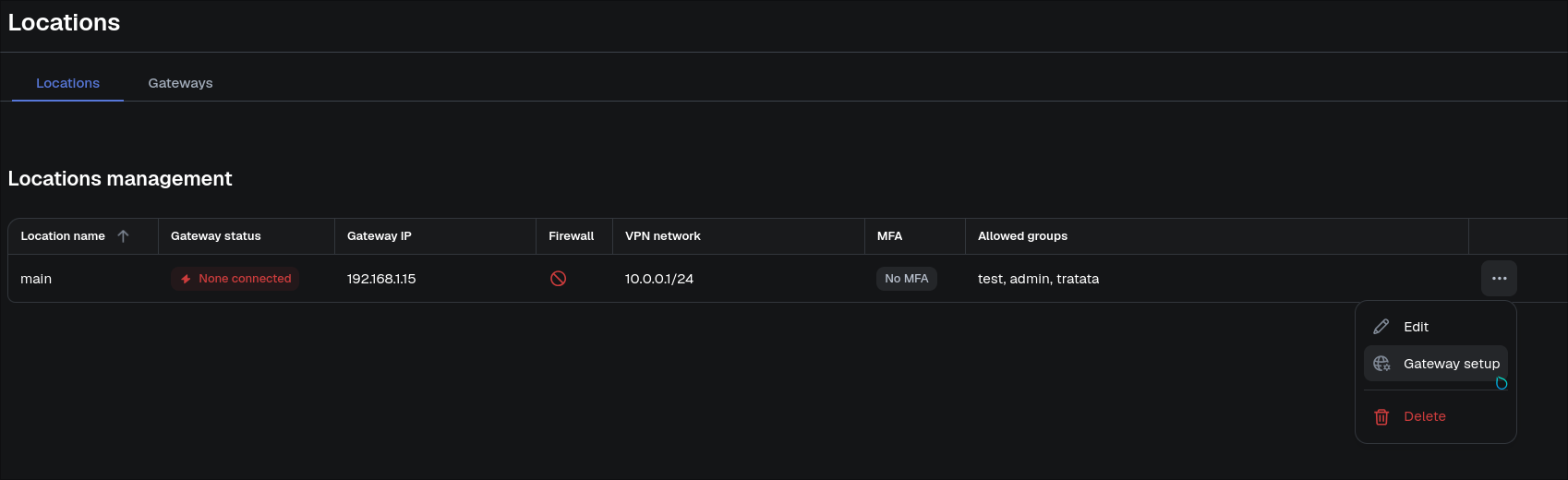

You can add multiple gateways using the "Gateway setup" context menu in the "Locations" table

Each gateway deployed for a given location will receive the same network configuration and will bind to the defined port in the location's Gateway Port.

The only thing left to do is to point your traffic to those gateways, which can be accomplished in several ways:

WireGuard is a stateful UDP protocol, so once a client establishes a session with a specific gateway, only that gateway can decrypt its traffic. In a multi-gateway setup, you must use a Layer 4 load balancer with properly configured health checks and sticky sessions to ensure traffic is consistently routed to a healthy instance and automatically redirected if a gateway fails.

You can find example Envoy proxy configuration in our deployment repository.

More details regarding WireGuard load-balancing can be found here: WireGuard UDP load-balancing.

• Proxy/load balancing - The load balancer must be configured with the Gateway addresses and ports. Clients connect to the proxy, which forwards VPN (UDP) traffic to one of the gateway backends. The proxy must perform regular health checks and ensure that traffic from each client is consistently routed to a single gateway instance (sticky sessions).

• Floating public IP - In this scenario, the public IP configured as the Location Gateway Address is assigned to only one gateway at a time. If the active gateway becomes unavailable, the floating IP automatically moves to the standby gateway, ensuring that client traffic is redirected to the healthy server.

Determining if multiple gateways are running

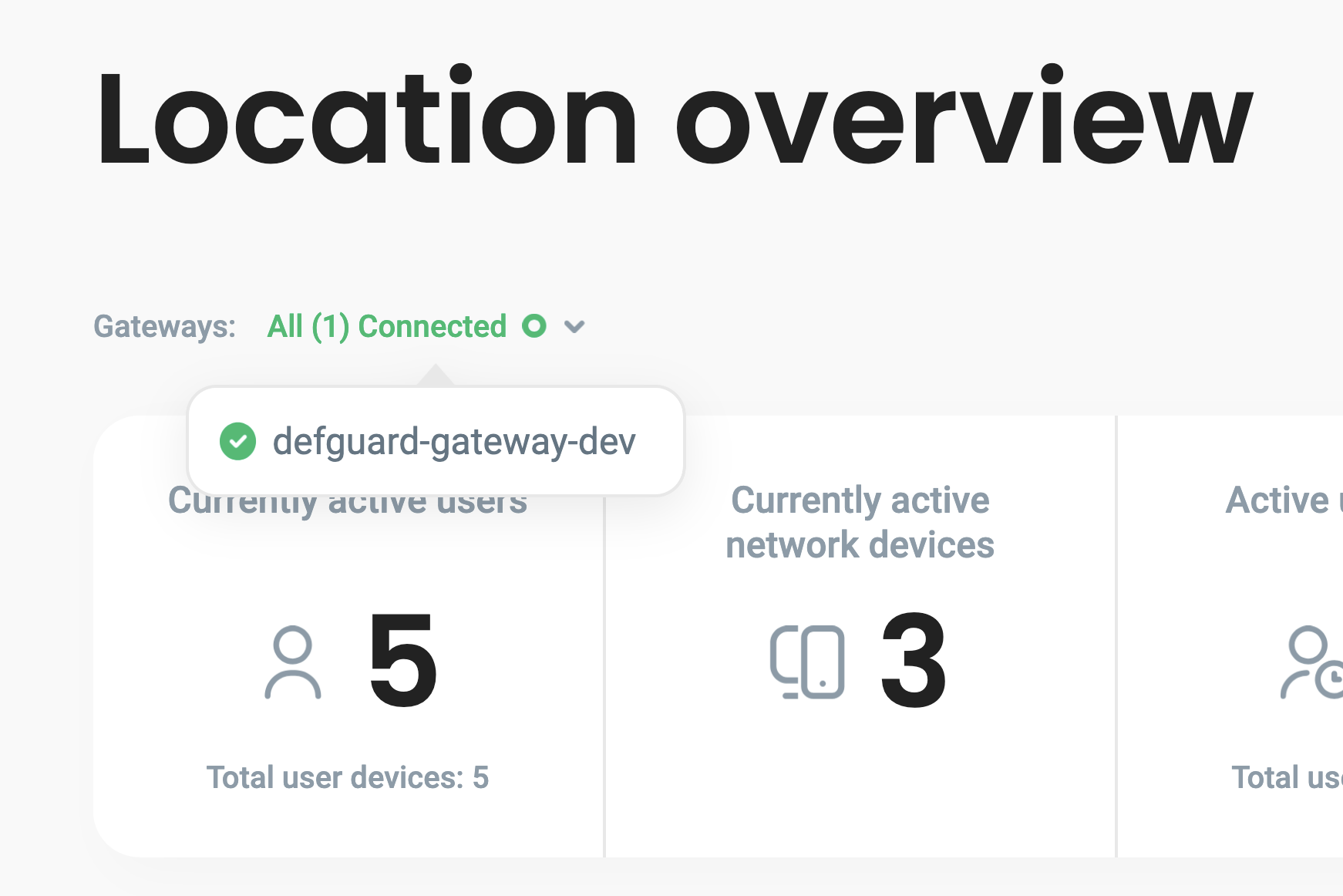

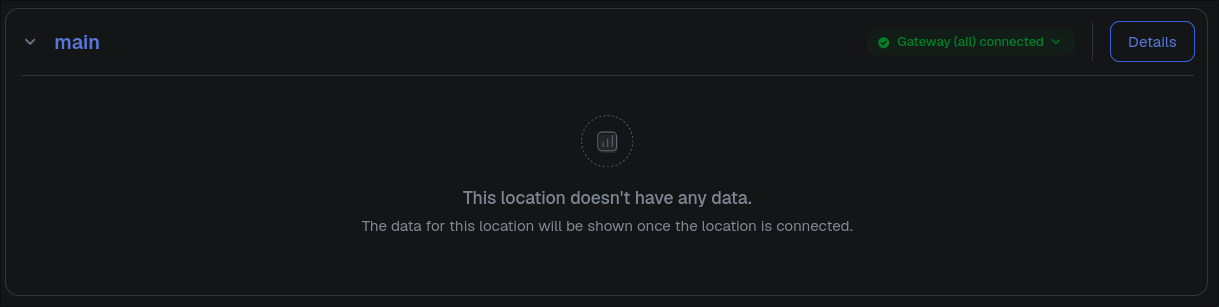

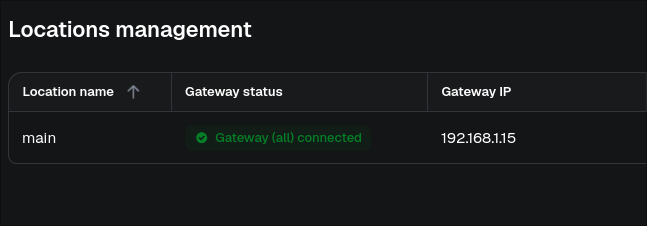

All gateways that are successfully connected for the location are displayed under the Location in VPN Overview and locations table, here is an example for two gateways:

What is the gateway peers persistence (if core/proxy services fail)

1. For VPN Locations without MFA - it's persistent until the system reboot - even if the gateway will not work - as the gateway configures WireGuard "in kernel".

2. For VPN Locations with MFA, this depends on the Peer Disconnect Threshold (seconds) setting in the VPN Location settings. This setting specifies that if the peer is inactive for (defined seconds), the gateway should remove it from the configuration. Therefore, if the proxy/core is not operational, MFA authentication will fail, and the peer will not be added if it is disconnected.

Core / Proxy - Failover

The core service handles gateway states as well as core connects to the proxy. Since proxy serves HTTP based protocol communication and should be in the public Internet, it needs to be secure, thus core connects to the proxy.

This way core can be in an Intranet network segment and proxy can be in DMZ, making Core completely cut-off on firewall from the Internet (you only can have only outgoing firewall rules from Intranet allowing only for core to connect to proxy).

So High Availability for core and proxy gets complicated, with multiple proxies core needs to manage those connections. We already have most of the code for that ready, but it's not yet production ready.

How to bullet-proof proxy & core with failover?

We recommend to deploy them on a failover solution - like on a kubernetes cluster (even small one - like mini-kube) . This way, Kubernetes manages: healthchecks and does failover. You can have cluster N-nodes and if any VM/node with Core/Proxy goes offline or health checks fail - it's migrated to a new node.
