# Step by step setting up a VPN server

### Introduction

This tutorial aims to show how quick and easy it is to deploy your VPN server using Defguard.

This tutorial is also available as a video:

{% embed url="<https://www.youtube.com/watch?v=MqlE6ZTn0bg>" %}

We assume you have:

* a **server with a public IP** (and you know what that IP address is and to which interface it's assigned) - in this example it's: *185.33.37.51*
* you have a **domain name** and know how to assign IP and manage subdomains, in our example:
  * Defguard main URL will be *my-server.defguard.net* (and the subdomain is pointed to *185.33.37.51*)
  * Defguard enrollment service that will enable to easily configure Desktop Clients just with one token is: *enroll.defguard.net* (this subdomain also points to *185.33.37.51*)
* server is Debian/Ubuntu-based
* have installed the [official Docker Engine](https://docs.docker.com/engine/install/debian/#install-using-the-repository) and [docker-compose](https://docs.docker.com/compose/install/standalone/#on-linux) (from our experience it's better to use the official Docker Engine then docker shipped with distro packages - but this should also work with distro packages) and have
* VPN network will be: 10.22.33.0/24 - but you can assign [any private network address](https://en.wikipedia.org/wiki/Private_network) and use it in this tutorial - we will name it *Example*
* If you have a **firewall**, we assume you have **open ports** (if not, below we will show you how to enable and secure your server):
  * 443 - in order to expose both Defguard & enrollment service - but also to automatically issue for these domains SSL Certificates (which the installer script does)
  * 50555 - on this port, the WireGuard VPN server will be listening for incoming connections from clients

### Deploying your VPN server

Deployment is really easy and will be done automatically if you follow these steps.

There are multiple ways to install Defguard tailored to your network & infrastructure - in fact, Defguard as a VPN server is one of the few to support secure deployments with network segmentation and secure communication, but for the purpose of this tutorial we will do the **easiest setup** and install all components on this server using docker & docker-compose. The installation process will also **automatically configure and deploy all your services and issue SSL certificates.**

To do so, just execute by **root** this simple command and follow the instructions:

```
curl --proto '=https' --tlsv1.2 -sSf -L https://raw.githubusercontent.com/DefGuard/deployment/main/docker-compose/setup.sh -O && bash setup.sh
```

In this example, we are answering the questions with the following answers:

```
Enter Defguard domain [default: ]: my-server.defguard.net
Enter enrollment domain [default: ]: enroll.defguard.net
Use HTTPS [default: false]: true
Enter VPN location name [default: ]: Example
Enter VPN server address and subnet (e.g. 10.0.60.1/24) [default: ]: 10.22.33.1/24
Enter VPN gateway public IP [default: ]: 185.33.37.51
Enter VPN gateway public port [default: ]: 50555
```

When finished, you should see the following message:

```
Defguard setup finished successfully
If your DNS configuration is correct, your Defguard instance should be available at:

	Web UI: https://my-server.defguard.net
	Enrollment service: https://enroll.defguard.net

You can log into the UI using the default admin user:

	username: admin
	password: bQ63RSp4o5ZAnIkv
```

<mark style="color:blue;">**And voilà! It was that easy!**</mark>

When you log in to your instance with user admin and the password that was generated for you, you should see that the VPN gateway is connected:

<figure><img src="/files/yWC4M4XBO8vRbKTkZXIH" alt=""><figcaption></figcaption></figure>

### Connecting to your VPN using Defguard desktop client

Download the latest client from: <https://github.com/DefGuard/client/releases> and install it - which is (during writing this article) version 0.1.1.

Now, go to **Defguard** Web UI (in this example: *<https://my-server.defguard.net>*) and go to *My Profile* and click on *Add Device:*

<figure><img src="/files/gPbqd5NilLPWbqWPwPSA" alt=""><figcaption></figcaption></figure>

Then choose *Defguard Client Remote Desktop Activation* - which will easily configure your Desktop client:

<figure><img src="/files/hzmi9JgEeUbQCYFTahEi" alt=""><figcaption></figcaption></figure>

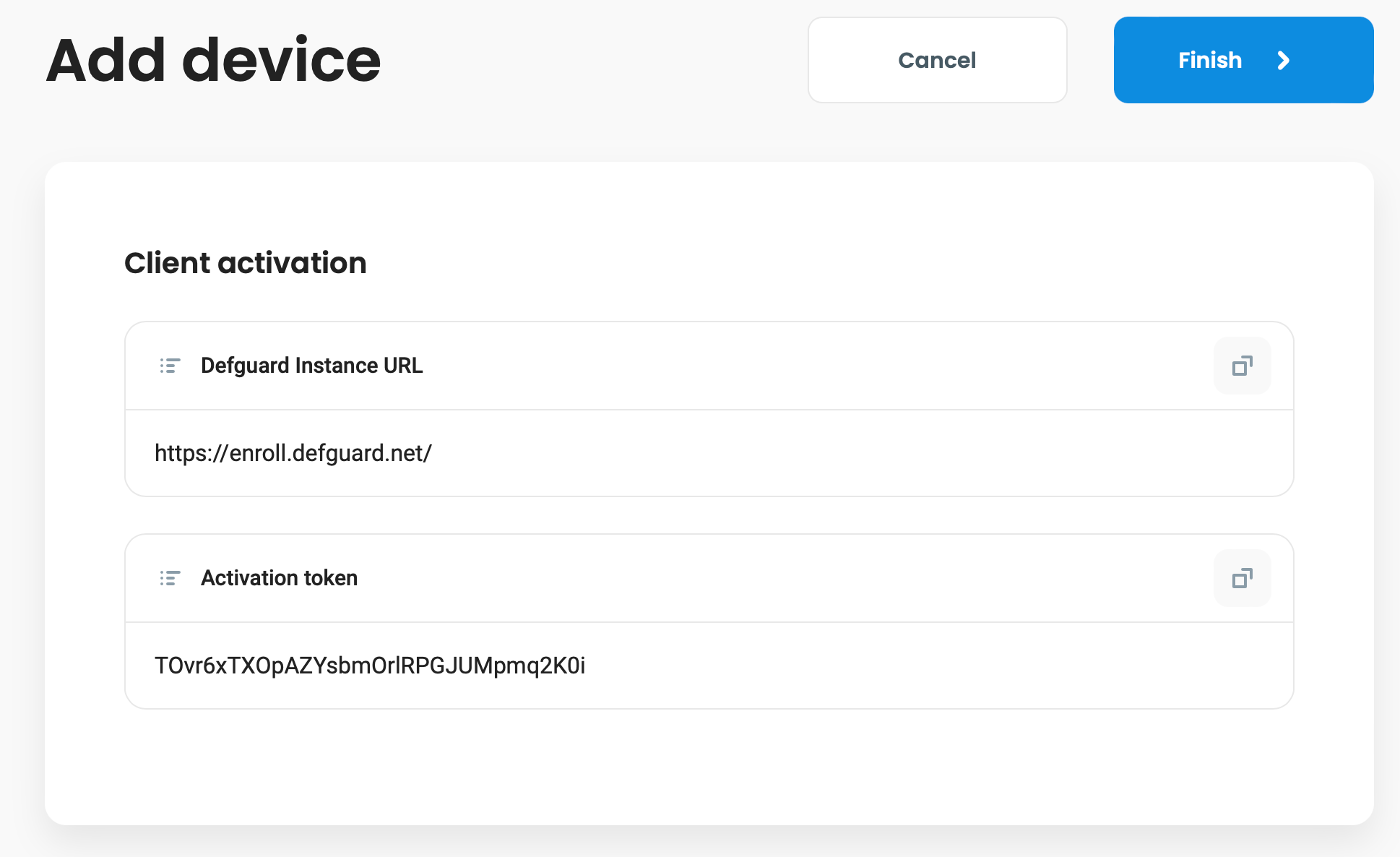

Defguard will show what **URL** (which is - as you see - your enrollment service URL) and **token** to paste to your desktop client:

<figure><img src="/files/McMsS8akP0QUIMryzxgl" alt=""><figcaption><p>Just by simply providing URL &#x26; token, your client will be automatically configured</p></figcaption></figure>

You can easily copy those with buttons provided in Defguard, and paste to your desktop client.

In desktop client, click on \_**+ Add instance** \_ and provide the URL and token:

<figure><img src="/files/iz0yu9f8FlV4NnTsoYFH" alt=""><figcaption></figcaption></figure>

After that, the client will ask you to name your device (however you like), after that click finish:

<figure><img src="/files/grtfZ24hnMBUznWlJrCr" alt=""><figcaption></figcaption></figure>

The client will instantly show your Defguard instance and the VPN (we named *Example):*

<figure><img src="/files/jDNoQcDB7EXH3VZhJw1r" alt=""><figcaption></figcaption></figure>

Also, you should see in your profile, that the client is configured and visible (for now - no details of IPs, etc - will automatically show details when you connect with your client):

<figure><img src="/files/3xuQcqWLwpcYuaRtpnyC" alt=""><figcaption></figcaption></figure>

Now let's click ***Connect*** and see if the VPN works, the best way to do so, is to open a terminal app and **ping** the VPN server address. Also to see nice statistics, choose in the client menu from *Grid view* (which is nice if you have multiple VPNs) the option *Detailed view:*

<figure><img src="/files/MqfyASoC5KmDfUBiMFaD" alt=""><figcaption></figcaption></figure>

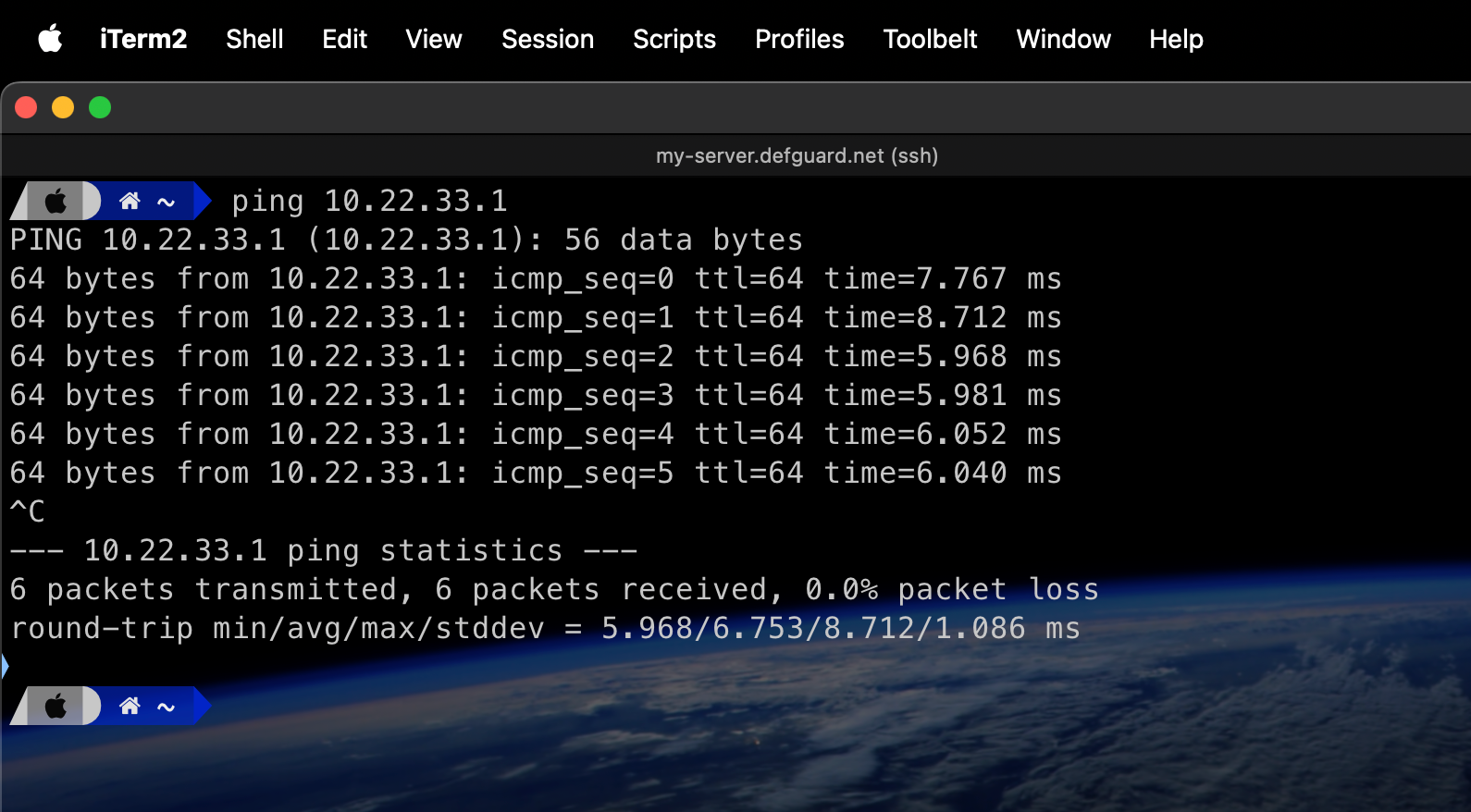

Now let's test if the VPN network is accessible. To do so, let's ping the VPN gateway internal IP: *10.22.33.1*

<figure><img src="/files/iual94ZRm0PUgltjimWX" alt=""><figcaption><p>VPN gateway responding to ping after connecting to VPN</p></figcaption></figure>

As an administrator, you will probably be happy to see this - Defguard VPN dashboard:

<figure><img src="/files/4YUVn4BUng7G8kDdk6dA" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
This completes your VPN setup - both server and client.

But if you would like to configure your VPN server to allow accessing Internet through the VPN gateway, please read the chapter below.
{% endhint %}

### Adding new location

If you would like to have multiple VPN locations - [please read this tutorial how to add another location in this setup.](/1.5/tutorials/step-by-step-setting-up-a-vpn-server/adding-additional-vpn-locations.md)

### Enabling to access Internet through your VPN

The most common purpose to set up your own VPN is to provide you (and your users - Defguard supports multiple users!) **anonymity and privacy** when accessing public internet.

It's great for everyday use (if you want to *hide* your real IP/location) or for example to encrypt **all your traffic when you are in a public location -** like being on Wi-Fi in a coffee shop, hotels, etc. - since **most if not all those places do not provide encrypted Wi-Fi (just open hotspots).**

So Defguard as a VPN service is one thing, but we need to do a few commands on the server, to enable routing all traffic through this server and your VPN. For your convenience, those we will explain in detail.

First of all we need a simple and easy way to manage firewall. In order to do so on Debian, install UFW (it's automatically installed on Ubuntu):

```
root@server# apt install ufw
```

Now let's enable on the firewall rules that provide packet forwarding (from your VPN to the Internet and vice versa).

Edit the /etc/default/ufw file to enable default policies for packet forwarding to ACCEPT

```
root@server:~# vi /etc/default/ufw
# line 19 : change
DEFAULT_FORWARD_POLICY="ACCEPT"

# reload
root@server:~# ufw reload
```

Edit the /etc/sysctl.conf file to enable pocket forwarding in the kernel:

```
root@server:~# vi /etc/sysctl.conf
# line 28 : uncomment
net.ipv4.ip_forward=1

# reload settings
root@server:~# sysctl -p
```

Now we need to configure firewall [NAT](https://en.wikipedia.org/wiki/Network_address_translation), so that the server will "*translate/masq*" VPN traffic behind its public IP. In order to do that, we need to add rules to MASQUERADE VPN network behind the public interface of the server.

{% hint style="info" %}
From version 1.3.0, gateway can automatically apply masquerade to traffic on all interfaces without the need for manual configuration. Refer to [Access Control List](/1.5/features/access-control-list.md#masquerade) for details. If you use this feature, you can skip the following manual masquerade setup step.
{% endhint %}

We know that VPN network is 10.22.33.0/24 now we need to be sure what interface has the public IP (in our case: 185.33.37.51) - let's figure it out with this command:

```
root@server:~# ip a | grep 185.33.37.51
    inet 185.33.37.51/24 brd 185.33.37.255 scope global ens18
```

So, our public interface is: **ens18**

Now just add the following to /etc/ufw/before.rules **just before the filter rules**:

```
# NAT table rules
*nat
:POSTROUTING ACCEPT [0:0]

# Forward VPN network traffic through ens18 - Change to match your egress interface
-A POSTROUTING -s 10.22.33.0/24 -o ens18 -j MASQUERADE

# don't delete the 'COMMIT' line or these NAT table rules won't
# be processed
COMMIT
```

A typical ufw configuration is that INPUT traffic is disabled, so we need to open ports for our WEB and WireGuard gateway:

```
# allow HTTPS to access defguard
root@server# ufw allow https

# allow WireGuard VPN which is on port 50555 with UDP protocol
root@server# ufw allow 50555/udp

# for the time being, you might also consider to allow SSH management
# until you learn how to allow traffic to SSH from VPN
root@server# ufw allow ssh
```

On Ubuntu, UFW is enabled by default, but on Debian it has to be enabled manually:

<pre><code><strong>root@server# ufw enable
</strong>Command may disrupt existing ssh connections. Proceed with operation (y|n)? y
Firewall is active and enabled on system startup
</code></pre>

On Ubuntu, we need to reload the configuration:

<pre><code><strong>root@server# ufw reload
</strong></code></pre>

Let's check the UFW configuration, should look like this:

```
root@server# ufw status verbose
Status: active
Logging: on (low)
Default: deny (incoming), allow (outgoing), allow (routed)
New profiles: skip

To                         Action      From
--                         ------      ----
50555/udp                  ALLOW IN    Anywhere
22/tcp                     ALLOW IN    Anywhere
443                        ALLOW IN    Anywhere
50555/udp (v6)             ALLOW IN    Anywhere (v6)
22/tcp (v6)                ALLOW IN    Anywhere (v6)
443 (v6)                   ALLOW IN    Anywhere (v6)
```

#### Testing your configuration with Defguard client

Defguard is the only (known to us) WireGuard client that during connection provides a choice to **route all your traffic through the VPN.** Just (before connecting) choose the option: **Allow all traffic** and click connect!

<figure><img src="/files/2xhzTpBTXu0vPIMDAvM3" alt=""><figcaption></figcaption></figure>

This is very useful, since some times you just want to be connected to your VPN to have the server/VPN networks accessible, and sometimes (like in the scenarios mentioned before) you want to hide and encrypt your traffic.

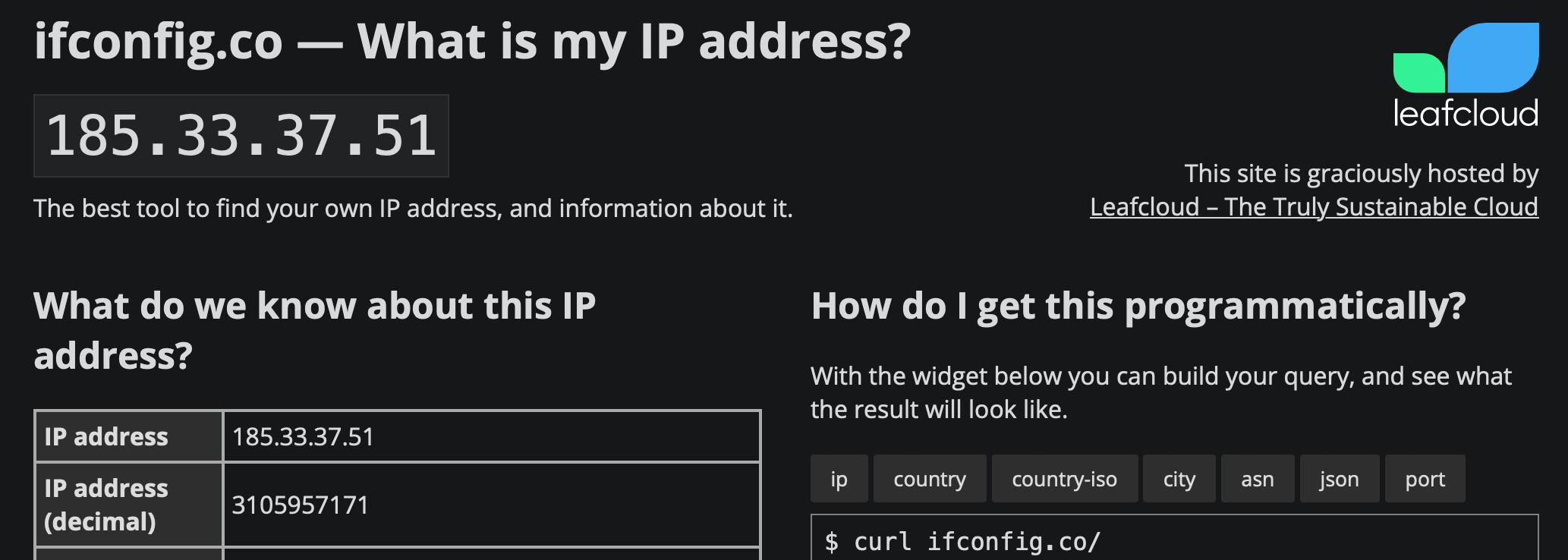

In order to check if everything works, let's visit a website <https://ifconfig.co> - that will show our public IP. If everything went smoothly, you should see **your VPN server public IP** (which in our example is: *185.33.37.51*):

<figure><img src="/files/ooAuGkhw0ImhMGhQg22i" alt=""><figcaption><p>Success! Defguard is AWESOME!</p></figcaption></figure>

## Final thoughts

We put a lot of effort in development, testing, and documentation - to make difficult things like security, VPN easy and good-looking. So for now, we kindly ask you to:

* star us on GitHub: <https://github.com/defguard/defguard>
* and spread the word about Defguard however you like!

Thank you from the whole [Defguard team.](https://teonite.com)


---
