# Vector integration guide [Vector ](https://vector.dev/)serves as a flexible log pipeline, allowing activity events to be collected, processed, and forwarded to a wide range of SIEM systems. By using Vector, you can transform and route logs as needed, making it easier to integrate with your existing observability tools and adapt to future changes in your logging infrastructure. \ The goal is to connect Defguard as [HTTP Source](https://vector.dev/docs/reference/configuration/sinks/http/) in Vector service. This guide uses an example Vector service running in Docker, configured via Docker Compose. ### Setup Vector For the sake of this example we will follow simple Docker deployment of Vector via Docker Compose, but you most likely want to follow Vector's guide to [deploy ](https://vector.dev/docs/setup/deployment/)it in your infrastructure. ### Vector configuration Save the following configuration to **vector.yaml** ```yaml sources: defguard: type: http_server address: 0.0.0.0:8001 encoding: ndjson sinks: console: type: console inputs: - defguard target: stdout encoding: codec: json ``` This basic configuration adds an HTTP source named `defguard` and a console sink, which forwards all logs received from `defguard` to standard output. Next, add vector service to your **docker-compose.yaml** file. ```yaml vector: image: timberio/vector:latest-alpine container_name: vector volumes: - ./vector.yaml:/etc/vector/vector.yaml:ro command: ["--config", "/etc/vector/vector.yaml"] ports: - "8001:8001" ``` Make sure that new `vector` service is up, and it loaded the configuration, it should print it in stdout: ``` INFO vector::app: Loading configs. paths=["/etc/vector/vector.toml"] ``` ### Add Vector destination In Defguard UI with an administrator account, go into settings page and choose `Activity log streaming`. Click `Add new` and choose `Vector` destination.

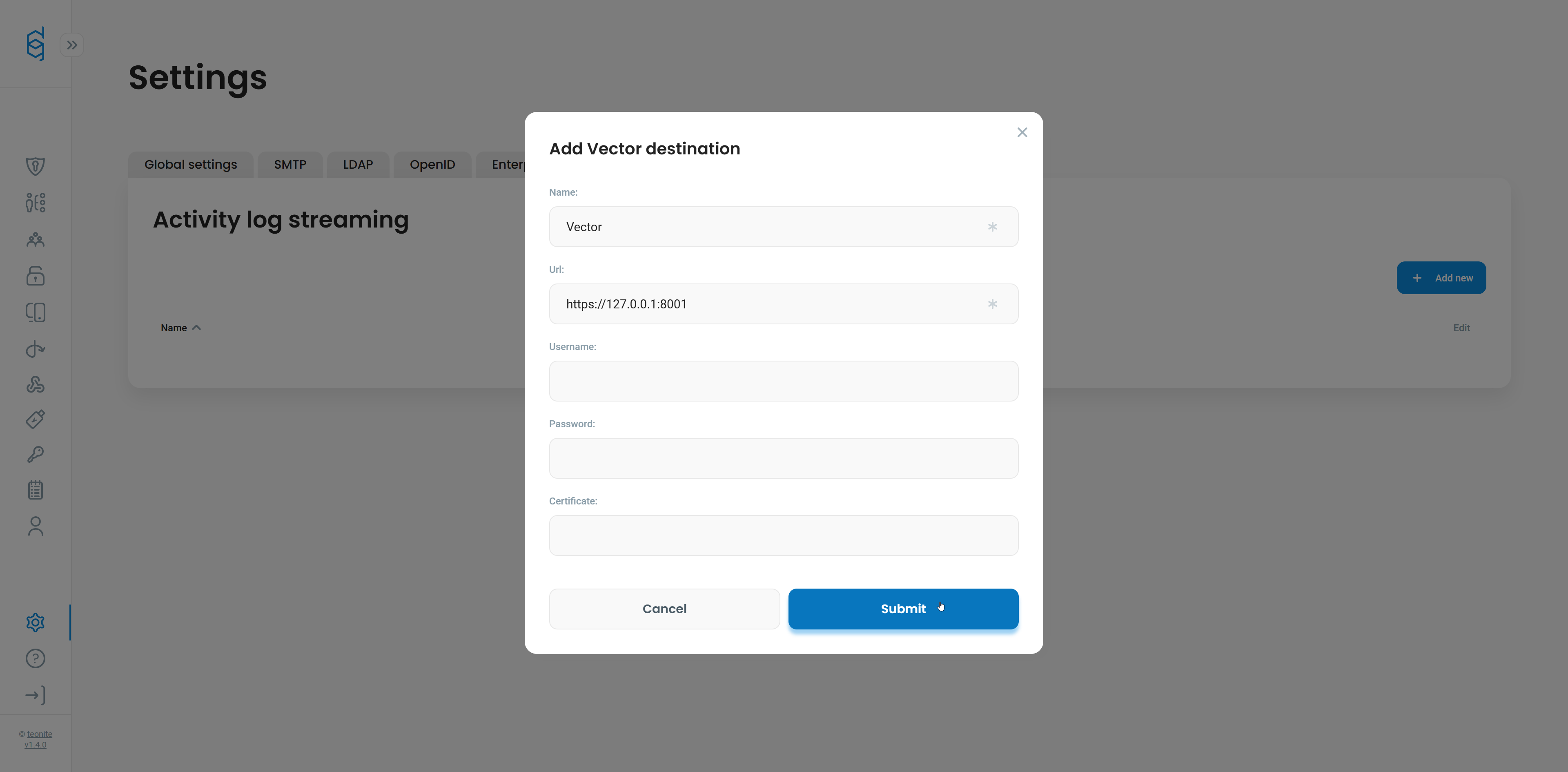

Fill out `Name` and `Url` of the form and click `Submit`. If your `defguard` instance is running in the same Docker Compose network as Vector, use `http://vector:8001` as the URL instead of `http://127.0.0.1`, since services in the same Compose network communicate by container name.

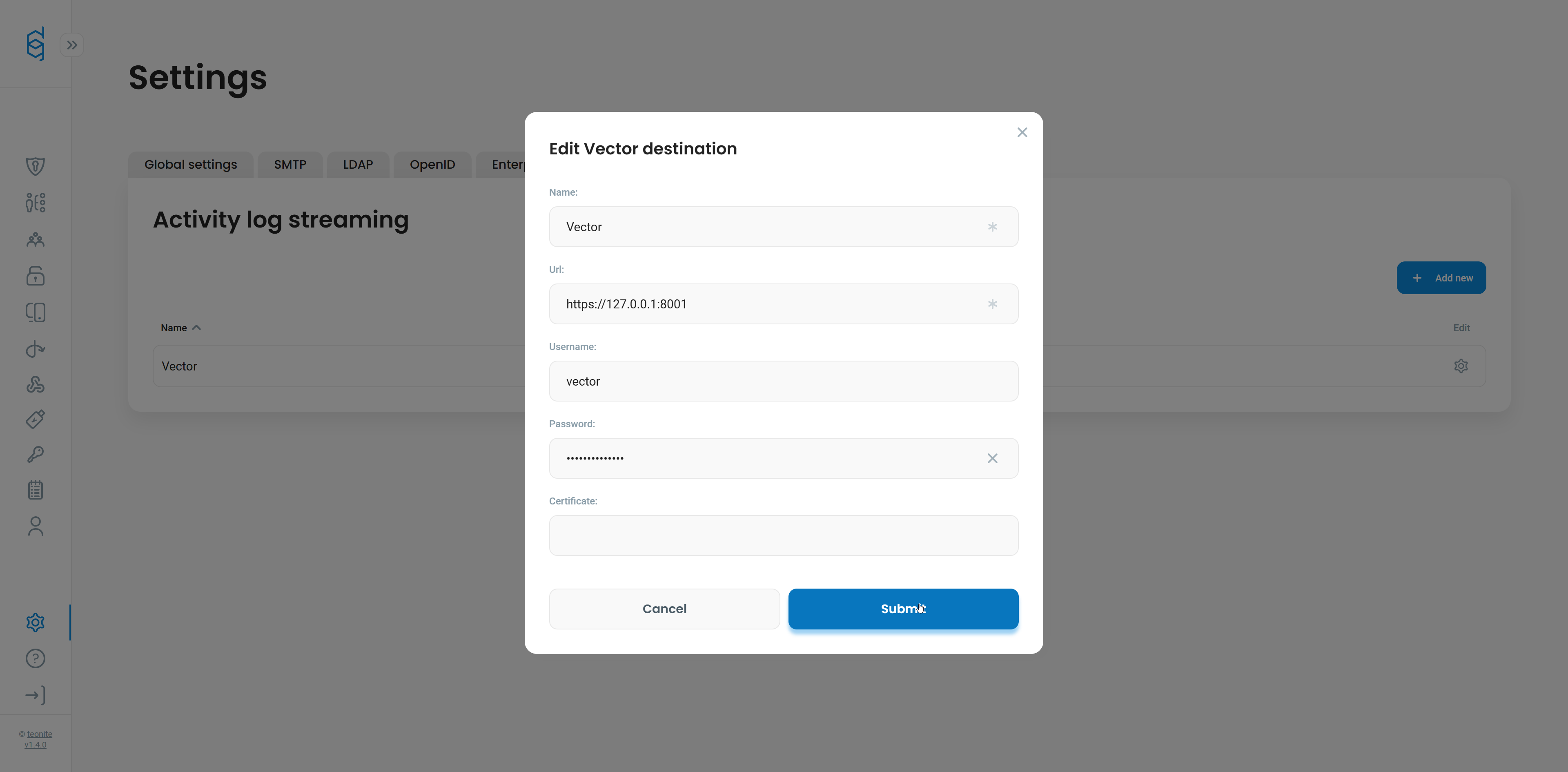

That's it! Defguard should now be sending activity events to Vector, and you should see them printed to `stdout` in the running Vector container. To verify that everything is working, try logging in or out of `defguard` and check if the events appear in the Vector stdout. ### Basic Authentication Basic Authentication is a simple HTTP authentication method that includes a username and password in the `Authorization` header of each request.\ To enable Basic Authentication for incoming log data, update your Vector configuration as follows: ```yaml sources: defguard: type: http_server address: 0.0.0.0:8001 encoding: ndjson auth: strategy: basic password: strongPassword username: vector ``` Next, add the configured `username` and `password` in Defguard settings to the Vector destination.

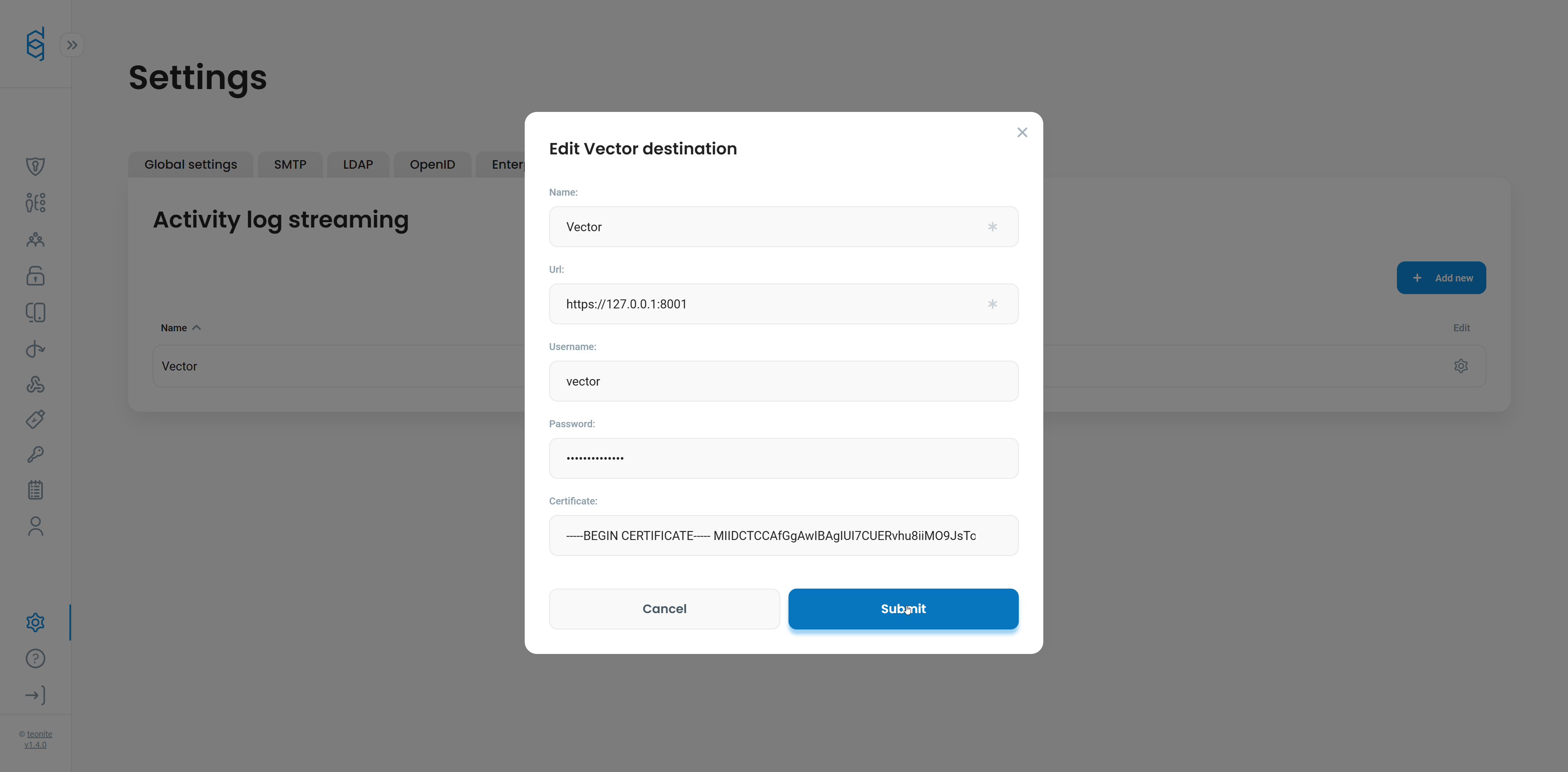

### TLS To send logs to a Vector destination over HTTPS, you first need to generate a TLS certificate. The following command uses OpenSSL to create a self-signed certificate for testing purposes: ``` openssl req -x509 -newkey rsa:2048 -nodes -keyout key.pem -out cert.pem -days 365 -subj "/CN=localhost" ``` The command above generates two files: `key.pem` (private key) and `cert.pem` (certificate).\ To use them with Vector, mount both files into the container by updating your Docker Compose configuration: ```yaml vector: image: timberio/vector:latest-alpine container_name: vector volumes: - ./vector.yaml:/etc/vector/vector.yaml:ro - ./key.pem:/etc/vector/key.pem:ro - ./cert.pem:/etc/vector/cert.pem:ro command: ["--config", "/etc/vector/vector.yaml"] ports: - "8001:8001" ``` Next, update Vector config: ```yaml sources: defguard: type: http_server address: 0.0.0.0:8001 encoding: ndjson auth: strategy: basic password: strongPassword username: vector tls: enabled: true ca_file: /etc/vector/cert.pem key_file: /etc/vector/key.pem ``` Next, copy the contents of `cert.pem` into the **Certificate** field in the Vector destination settings. Then, update the **URL** field to use the `https` scheme instead of `http`.

### Vector integration configuration

Name	Example value	Required	Vector related configuration	Description
Name	Vector	true		Assigned name for the destination.
Url	http(s)://127.0.0.1:8001	true	address	Address of running vector HTTP source.
Username	vector	false	auth.username	username for Basic Authentication
Password	strongPassword	false	auth.password	password for Basic Authentication
Cert	contents of cert.pem	false	tls	Used for TLS connection
